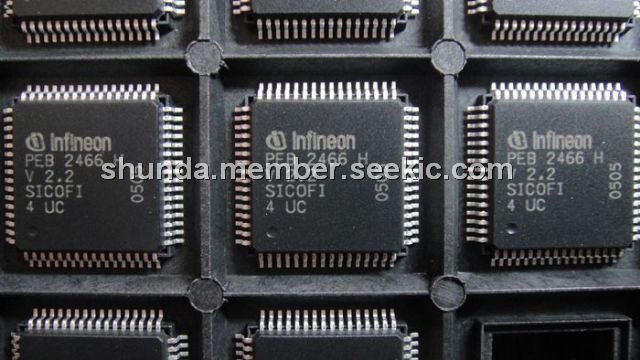

PEB2466HV

four channel, codec filter, PCM- and m-controller, QFP, LSSGR recommendation, 35 mW, 1 W, 0.9 mm

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.30~5.00

PartNumber:: PEB2466HV

Brand:: Infineon Technologies AG - Infineon | Pack: QFP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-12

From Other Seller

Part Number:PEB2466HV
US $2.30 - 5.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

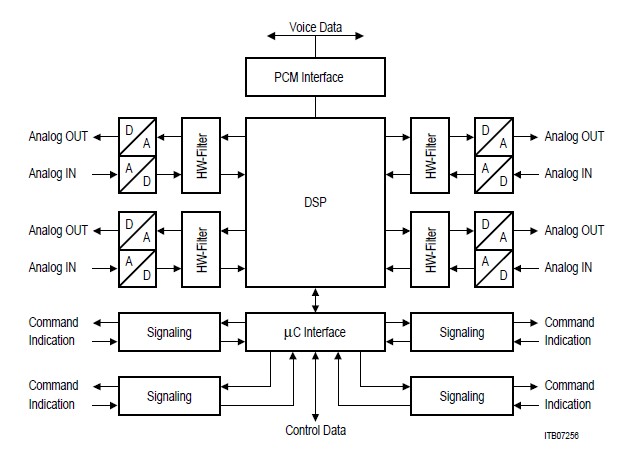

The PEB2466HV is a four channel codec filter with PCM- and m-controller interface SICOFI4-mC. The four channel Signal Processing Codec Filter PEB2466HV SICOFI-4-mC is the logical continuation of a well established family of SIEMENS programmable codec-filter-ICs. Its major difference to the PEB 2465 (SICOFI-4) is the PCM and mC interface, which replaces the IOM-2 interface. The SICOFI-4 mC is a fully integrated PCM CODEC and FILTER fabricated in low power 1m CMOS technology for applications in digital communication systems. Based on an advanced digital filter concept, the PEB2466HV provides excellent transmission performance and high flexibility.

Parametrics

PEB2466HV absolute maximum ratings: (1)VDD referred to GNDD: -0.3 7.0 V; (2)GNDA to GNDD: -0.6 0.6 V; (3)Analog input and output voltage. Referred to VDD = 5 V: -5.3 to 0.3V;; (4)Referred to GNDA = 0 V: -0.3 to 5.3V; (5)All digital input voltages. Referred to GNDD = 0 V; (VDD = 5V): -0.3 to 5.3V; (6)Referred to VDD = 5 V; (GNDD = 0 V): 5.3 to 0.3V; (7)DC input and output current at any input or output pin (free from latch-up): 10 mA; (8)Storage temperature TSTG: 60 to 125℃; (9)Ambient temperature under bias TA: 10 to 80℃; (10)Power dissipation (package) PD: 1 W.

Features

PEB2466HV features: (1)Specification according to relevant CCITT, EIA and LSSGR recommendations; (2)Digital signal processing technique; (3)Serial m-Controller interface; (4)2 programmable PCM-interfaces (up to 8 Mbit/s); (5)Programmable interface to electronic SLICs and transformer solutions for signaling information; (6)High analog driving capability (300 W) for direct driving of transformers Single 5 V power supply; (7)Advanced low power 0.9 mm analog CMOS technology; (8)Low power consumption (< 35 mW per channel); (9)High performance A/D conversion; (10)High performance D/A conversion; (11)Advanced test capabilities.
