Product Summary
The SST4393-T1-E3 is a N-Channel JFET. It features many of the superior characteristics of JFETs which make it a good choice for demanding analog switching applications and for specialized amplifier circuits. The applications of the SST4393-T1-E3 include Analog Switches, Choppers, Sample-and-Hold, Normally "On" Switches, Current Limiters, Commutators.
Parametrics
SST4393-T1-E3 absolute maximum ratings: (1)Gate-Drain, Gate-Source Voltage: (2N/PN Prefixes): –40 V, (SST Prefix): –35 V; (2)Gate Current: 50 mA; (3)Lead Temperature: 300℃; (4)Storage Temperature : (2N Prefix): –65 to 200℃, (PN/SST Prefixes): –55 to 150℃; (5)Operating Junction Temperature: (2N Prefix): –55 to 200℃, (PN/SST Prefixes): –55 to 150℃; (6)Power Dissipation : (2N Prefix): (TC = 25℃) 1800 mW, (PN/SST Prefixes): 350 mW.
Features
SST4393-T1-E3 features: (1)Low On-Resistance: 4391<30 Ω; (2)Fast Switching—tON: 4 ns; (3)High Off-Isolation: ID(off) with Low Leakage; (4)Low Capacitance: < 3.5 pF; (5)Low Insertion Loss.

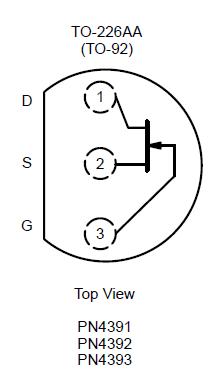

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SST4393-T1-E3 |
Vishay/Siliconix |
JFET 55V 5mA |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SST404 |
Vishay/Siliconix |
JFET Dual 58V 3.5mA |
Data Sheet |
Negotiable |
|
||||
|
SST404-E3 |
Vishay/Siliconix |
JFET Dual 58V 3.5mA |
Data Sheet |
Negotiable |
|
||||
|
SST404-T1 |
Vishay/Siliconix |
JFET Dual 58V 3.5mA |
Data Sheet |
Negotiable |
|
||||
|
SST404-T1-E3 |
Vishay/Siliconix |
JFET Dual 58V 3.5mA |
Data Sheet |
Negotiable |
|
||||
|
SST405 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SST406 |
Vishay/Siliconix |
JFET Dual 58V 3.5mA |
Data Sheet |
Negotiable |
|
||||
