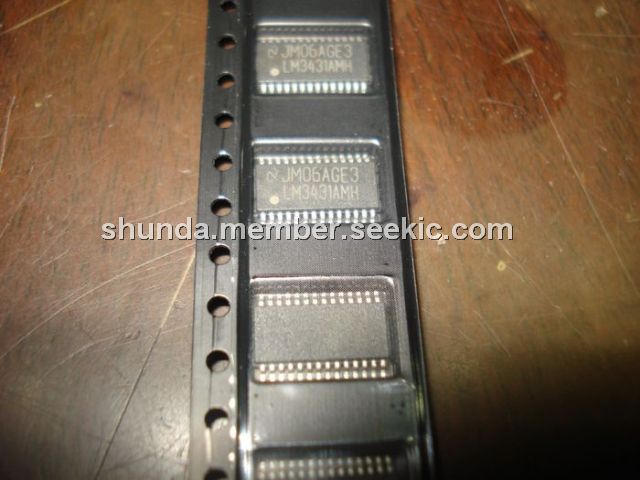

Product Summary
The LM3431AMH is a 3-channel linear current controller combined with a boost switching controller ideal for driving LED back-light panels in space critical applications. The LM3431AMH drives 3 external NPN transistors or MOSFETs to deliver high accuracy constant current to 3 LED strings. Output current is adjustable to drive strings in excess of 200 mA. The applications of the LM3431AMH are Automotive Infotainment Displays, Small to Medium Format Displays.
Parametrics
LM3431AMH absolute maximum ratings: (1)Voltages from the indicated pins to SGND: VIN:-0.3V to 37V, EN:-0.3V to 10V, DIM:-0.3V to 7V, MODE/F:-0.3V to 7V, REFIN:-0.3V to 7V, THM:-0.3V to 7V, DLY:-0.3V to 7V, SNSx:-0.3V to 7V, NDRVx:-0.3V to 7V, CFB:-0.3V to 7V, SC:-0.3V to 40V, AFB:-0.3V to 7V, CS:-0.3V to 7V, VCC:-0.3V to 7V; (2)Storage Temperature -65℃ to +150℃; (3)ESD Rating: Human Body Model:2 kV.
Features
LM3431AMH features: (1)LM3431Q/LM3431AQ are Automotive Grade products that are AEC-Q100 grade 1 qualified (-40℃ to 125℃ operating junction temperature); (2)3-channel programmable LED current; (3)High accuracy linear current regulation; (4)Analog and digital PWM dimming control; (5)Up to 25kHz dimming frequency; (6)>100:1 contrast ratio; (7)Integrated Boost controller; (8)5V to 36V input voltage range; (9)Adjustable switching frequency up to 1MHz; (10)LED short and open protection; (11)Selectable fault shutdown or automatic restart; (12)Programmable fault delay; (13)Programmable cycle by cycle current limit; (14)Output Over Voltage Protection; (15)No Audible Noise; (16)Enable pin; (17)LED Over-Temperature shutdown input; (18)Thermal Shutdown; (19)TSSOP-28 exposed pad package.

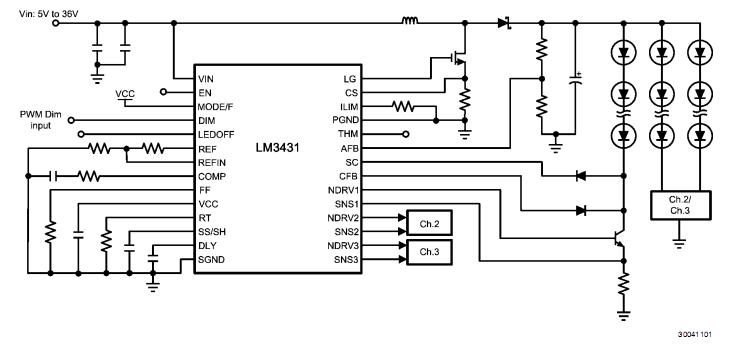

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM3431AMH/NOPB |
National Semiconductor (TI) |
LED Lighting Drivers |
Data Sheet |
|
|
||||||||||||
|
LM3431AMHX/NOPB |
National Semiconductor (TI) |
LED Lighting Drivers |
Data Sheet |
|
|
||||||||||||
