Product Summary

The AQY212GS is a high capacity relay. The applications of it are Measuring instruments, Security and disaster-preventing system.

Parametrics

AQY212GS absolute maximum ratings: (1)Input LED forward current:50mA; (2)Input LED reverse voltage:5V; (3)Input Peak forward current:1A; (4)Input Power dissipation:75mW; (5)Output Load voltage (peak AC):60V; (6)Output Continuous load current:1.0A; (7)Output Peak load current:3A; (8)Output Power dissipation:300mW; (9)Total power dissipation:350mW; (10)I/O isolation voltage:1500VAC; (11)Operating temperature:-40℃ to +85℃; (12)Storage temperature:-40℃ to +100℃.

Features

AQY212GS features: (1)Greatly increased load current in miniature SOP4-pin package (1.25A high capacity type added); (2)Greatly improved specifications allow you to use this in place of mercury and mechanical relays.

Diagrams

AQY212GS circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AQY212GS
AQY212GS
Panasonic Electric Works
Solid State Relays 500MA 60V 4PIN SPST 1A
Data Sheet
0-1: $3.13
1-25: $2.87
25-50: $2.60
50-100: $2.39
AQY212GSX
AQY212GSX
Panasonic Electric Works
Solid State Relays 60V 550mA 1A SOP Form A Norm-Open
Data Sheet
0-1000: $2.21
1000-3000: $2.14

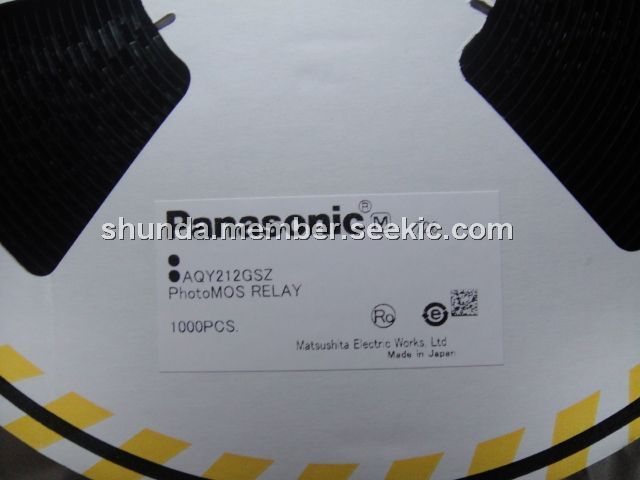

AQY212GSZ
AQY212GSZ
Panasonic Electric Works
Solid State Relays 60V 550mA 1A SOP Form A Norm-Open
Data Sheet
0-1000: $2.18
1000-3000: $2.12
