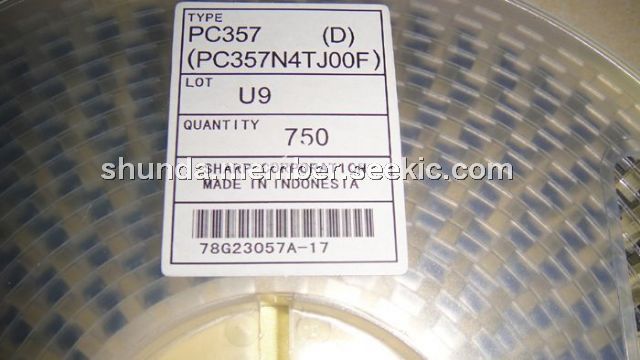

PC357N4TJ00F

Photocoupler, SOP, 50 mA, 70 mW, Lead-free, RoHS directive compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.30

PartNumber:: PC357N4TJ00F

Brand:: Sharp Electrionic Components - Sharp | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-18

From Other Seller

Part Number:PC357N4TJ00F
US $0.10 - 0.30
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PC357N4TJ00F is a Mini-flat Package, General Purpose Photocoupler. It contains an IRED optically coupled to a phototransistor.

Parametrics

PC357N4TJ00F absolute maximum ratings: (1)Forward current: 50 mA; (2)Peak forward current: 1 A; (3)Reverse voltage: 6 V; (4)Power dissipation: 70 mW; (5)Collector-emitter voltage: 80 V; (6)Emitter-collector voltage: 6 V; (7)Collector current: 50 mA; (8)Collector power dissipation: 150 mW; (9)Total power dissipation: 170 mW; (10)Operating temperature: -30 to +100 ℃; (11)Storage temperature: -40 to +125 ℃; (12)Soldering temperature: 260 ℃.

Features

PC357N4TJ00F features: (1)4-pin Mini-flat package; (2)Double transfer mold package (Ideal for Flow Soldering); (3)High collector-emitter voltage (VCEO : 80V); (4)Current transfer ratio (CTR) : MIN. 50% at IF=5mA, VCE=5V; (5)Several CTR ranks available; (6)High isolation voltage between input and output (Viso(rms): 3.75kV); (7)Lead-free and RoHS directive compliant.
