Product Summary

The SCANSTA111MT is an Enhanced SCAN bridge. It extends the IEEE Std. 1149.1 test bus into a multidrop test bus environment.

Parametrics

SCANSTA111MT absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +4.0V; (2)DC Input Diode Current (IIK) VI = -0.5V: -20 mA; (3)DC Input Voltage (VI): -0.5V to +3.9V; (4)DC Output Diode Current (IOK) VO = -0.5V: -20 mA; (5)DC Output Voltage (VO): -0.3V to +3.9V; (6)DC Output Source/Sink Current (IO): ±50 mA; (7)DC VCC or Ground Current: ±50 mA per Output Pin; (8)DC Latchup Source or Sink Current: ±300 mA; (9)Junction Temperature (Plastic): +150℃; (10)Storage Temperature: -65℃ to +150℃.

Features

SCANSTA111MT features: (1)True IEEE 1149.1 hierarchical and multidrop addressable capability; (2)The 7 slot inputs support up to 121 unique addresses, an Interrogation Address, Broadcast Address, and 4 Multi-cast Group Addresses (address 000000 is reserved); (3)3 IEEE 1149.1-compatible configurable local scan ports; (4)Mode Register0 allows local TAPs to be bypassed, selected for insertion into the scan chain individually, or serially in groups of two or three.

Diagrams

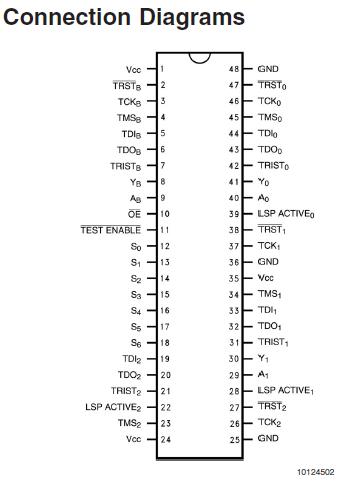

SCANSTA111MT connection diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SCANSTA111MT
SCANSTA111MT
National Semiconductor (TI)
Interface - Specialized
Data Sheet
0-76: $5.35
76-114: $4.86
114-266: $4.37
266-532: $4.01
SCANSTA111MT/NOPB
SCANSTA111MT/NOPB
National Semiconductor (TI)
Interface - Specialized
Data Sheet
0-1: $6.08
1-25: $4.98
25-100: $4.49
100-250: $4.13
SCANSTA111MTX/NOPB
SCANSTA111MTX/NOPB
National Semiconductor (TI)
Interface - Specialized
Data Sheet
0-646: $3.76
646-1000: $3.28
SCANSTA111MTX
SCANSTA111MTX
National Semiconductor (TI)
Interface - Specialized
Data Sheet
0-1000: $3.28
