MC14LC5480DWR2

On-Chip Precision Reference Voltage 1.575V, SOIC20, 5 V PCM Codec-Filter, general purpose

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.80

PartNumber:: MC14LC5480DWR2

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: SOIC | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-17

From Other Seller

Part Number:MC14LC5480DWR2
US $0.50 - 1.80
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

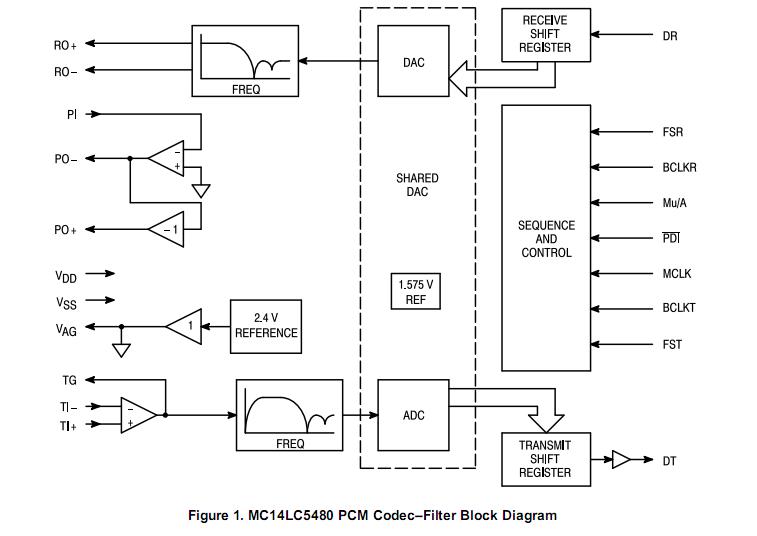

The MC14LC5480DWR2 is a general purpose per channel PCM Codec-Filter with pin selectable Mu-Law or A-Law companding, and is offered in 20-pin DIP, SOG, and SSOP packages. The MC14LC5480DWR2 performs the voice digitization and reconstruction as well as the band limiting and smoothing required for PCM systems. The MC14LC5480DWR2 is designed to operate in both synchronous and asynchronous applications and contains an on-chip precision reference voltage.

Parametrics

MC14LC5480DWR2 absolute maximum ratings: (1)DC Supply Voltage:-0.5V to 6V; (2)Voltage on Any Analog Input or Output Pin:VSS-0.3V to VDD+0.3V; (3)Voltage on Any Digital Input or Output Pin:VSS-0.3V to VDD+0.3V; (4)Operating Temperature Range:-40℃ to + 85℃; (5)Storage Temperature Range:-85℃ to +150℃.

Features

MC14LC5480DWR2 features: (1)Pin for Pin Replacement for the MC145480; (2)Single 5 V Power Supply; (3)Typical Power Dissipation of 15 mW, Power-Down of 0.01 mW; (4)Fully-Differential Analog Circuit Design for Lowest Noise; (5)Transmit Band-Pass and Receive Low-Pass Filters On-Chip; (6)Active R-C Pre-Filtering and Post-Filtering; (7)Mu-Law and A-Law Companding by Pin Selection; (8)On-Chip Precision Reference Voltage (1.575 V); (9)Push-Pull 300Ω Power Drivers with External Gain Adjust; (10)MC145536EVK is the Evaluation Kit that Also Includes the MC145532 ADPCM Transcoder.
