Product Summary

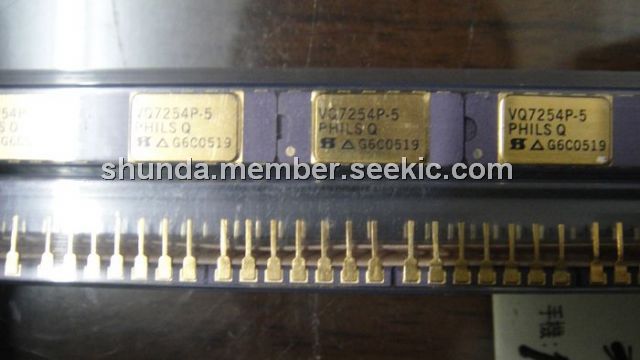

The VQ7254P is a N-and P-channel enhancement mode MOS transistor array.

Parametrics

VQ7254P absolute maximum ratings: (1)Drain source voltage, VDS: -20 to 20V; (2)Gate source voltage, VGS: ±20V; (3)Continuous drain current, ID: ±2A; (4)Pulsed drain current, IDM: ±3A; (5)Operating junction, Tj: -40 to 100℃; (6)Storage temperature, Tstg: -40 to 150℃.

Features

VQ7254P features: (1)V(BR) DSS: 20/-20; (2)rDS(ON) Q1 + Q2 or Q3 +Q4: 3Ω; (3)ID: 2A; (4)Package: side braze.

Diagrams

VQ7254P pin configuration diagram

VQ7254J
VQ7254J
Other

Data Sheet
Negotiable
