Product Summary

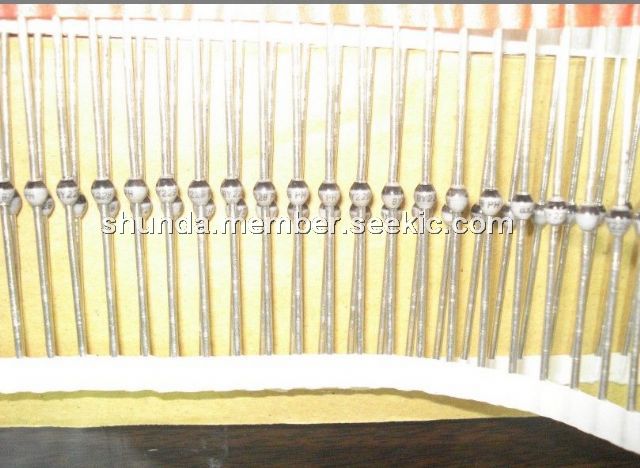

The BY228 is a clamper/damper glass passivated rectifier.
Parametrics
BY228 absolute maximum ratings: (1)Maximum non repetitive peak reverse voltage: 1650 Volts; (2)Maximum repetitive peak reverse voltage: 1500 Volts; (3)Maximum RMS voltage: 1050 Volts; (4)Maximum DC blocking voltage: 1500 Volts; (5)Maximum instantaneous forward voltage at 2.5A: 1.6 Volts at rated peak reverse voltage TJ=140℃: 200 mA; (6)Maximum reverse recovery time: 20.0 ms; (7)Maximum forward recovery time: 1.0 ms; (8)Typical junction capacitance: 40.0 pF; (9)Typical thermal resistance: 20.0 ℃/W; (10)Operating junction temperature range: -65 to +150 ℃; (11)Storage temperature range: -65 to +200 ℃.
Features
BY228 features: (1)High temperature metallurgically bonded construction; (2)Glass passivated cavity-free junction; (3)2.5 ampere operation at TA=50℃ with no thermal runaway; (4)Typical IR less than 0.1mA; (5)Hermetically sealed package; (6)Capable of meeting environmental standards of MIL-S-19500; (7)High temperature soldering guaranteed: 350℃/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BY228 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BY228 SOD-64 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BY228/4 |
Vishay Semiconductors |
Rectifiers 1500 Volt 3.0 Amp 50 Amp IFSM |
Data Sheet |
|
|
||||||||||||
|
BY228/13 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BY228/15 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BY228-13 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BY228-15TAP |
Vishay Semiconductors |
Rectifiers 3.0 Amp 1500 Volt 50 Amp IFSM |
Data Sheet |
|
|
||||||||||||
|
BY228-15TR |
Vishay Semiconductors |
Rectifiers 3.0 Amp 1500 Volt 50 Amp IFSM |
Data Sheet |
|
|
||||||||||||
