Product Summary

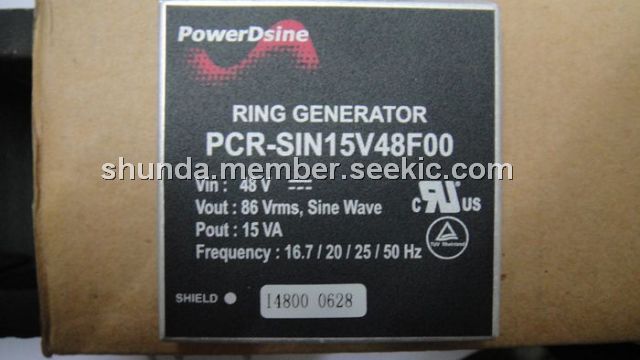

The PCR-SIN15V48F00 Ring Generator offers high performance with an advanced overload protection mechanism. Each unit includes an internal crystal oscillator and supports all popular ringing frequencies of 16.7, 20, 25 and 50Hz. The PCR-SIN15V48F00 can continuously support up to 40 standard North American REN loads, providing a low THD sine wave ringing signal.

Parametrics

PCR-SIN15V48F00 absolute maximum ratings: (1)Supply Voltage: +85V; (2)Inhibit, F1 and F0 Input Voltage: -0.5V to +5.2V; (3)Operating Ambient Temperature (TA): -40℃ to +85℃; (4)Storage Temperature: -55℃ to +90℃; (5)Lead Temperature (Soldering, 10 sec max.): +300℃.

Features

PCR-SIN15V48F00 features: (1)Support 10-40 standard North American REN; (2)Adjustable Output Voltage between 45-100Vrms; (3)Overload Control with Constant Output Power; (4)Output Short Circuit Protection; (5)Digital Frequency Selection; (6)Zero Crossing Synchronization Output Signal; (7)Input Under/Over Voltage Protection; (8)High Output Load Indication Signal; (9)Low THD Sine Wave Output; (10)Fully Floating Output; (11)90 Days Warranty; (12)UL1950, CSA C22.2 No. 950 and EN60950 Approved.

Diagrams

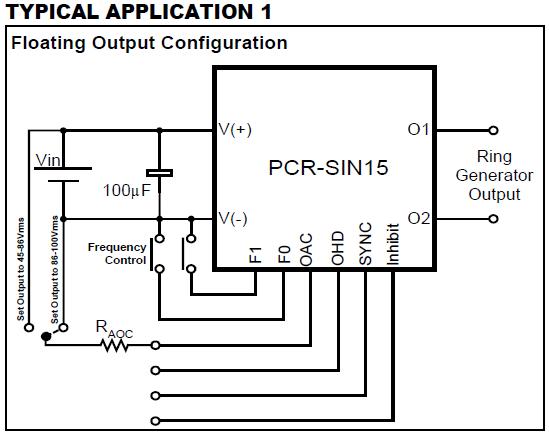

PCR-SIN15V48F00 typical application diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PCR-SIN15V48F00
PCR-SIN15V48F00

Other


Data Sheet

Negotiable
