SN65LVDS86AQDGGRQ1

FlatLink receiver, TSSOP-48, -0.5 V to 4 V, Tolerates 4-kV HBM ESD

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~3.00

PartNumber:: SN65LVDS86AQDGGRQ1

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-19

From Other Seller

Part Number:SN65LVDS86AQDGGRQ1
US $1.00 - 3.00
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
P102W

US $15.00 - 22.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

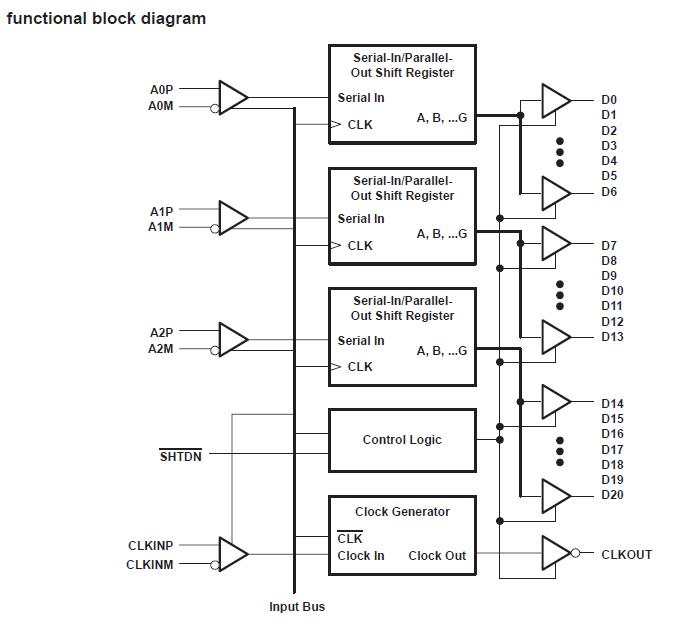

The SN65LVDS86AQDGGRQ1 FlatLink receiver contains three serial-in 7-bit parallel-out shift registers and four low-voltage differential signaling (LVDS) line receivers in a single integrated circuit. These functions of SN65LVDS86AQDGGRQ1 allow receipt of synchronous data from a compatible transmitter, such as the SN75LVDS81, ’83, ’84, or ’85, over four balanced-pair conductors and expansion to 21 bits of single-ended low-voltage LVTTL synchronous data at a lower transfer rate.

Parametrics

SN65LVDS86AQDGGRQ1 absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 4 V; (2)Voltage range at any terminal: -0.5 V to VCC + 0.5 V; (3)Electrostatic discharge: All pins (Class 3A): 4 KV, All pins (Class 2B): 200 V; (4)Operating virtual junction temperature range, TJ: -40℃ to 150℃; (5)Storage temperature range, Tstg: -65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 in) from case for 10 s: 260℃.

Features

SN65LVDS86AQDGGRQ1 features: (1)3:21 Data Channel Expansion at up to 178.5 Mbytes/s Throughput; (2)Suited for SVGA, XGA, or SXGA Display Data Transmission From Controller to Display With Very Low EMI; (3)Three Data Channels and Clock Low-Voltage Differential Channels In and 21 Data and Clock Low-Voltage TTL Channels Out; (4)Operates From a Single 3.3-V Supply; (5)Tolerates 4-kV HBM ESD; (6)Packaged in Thin Shrink Small-Outline Package (TSSOP) With 20-Mil Terminal Pitch.
