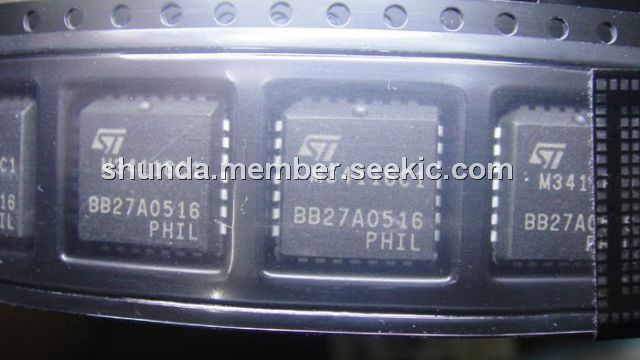

Product Summary
The M34116C1 is a PCM conference call and tone generation circuit. It is a product specifically designed for applications in PCM digital exchanges. The M34116C1 is able to handle up to 64 channels in any conferences combination from 1 to 29 conferences in parallel and to generate seven different tones and one melody. The M34116C1 is full pin and function compatible with the M116. In addition, it has the capability to generate tone directly coded in PCM.
Parametrics
M34116C1 absolute maximum ratings: (1)Supply Voltage:-0.3 to 7V; (2)Input Voltage:-0.3 to VDD; (3)Off State Output Voltage:-0.3 to 7V; (4)Total Power Dissipation:500mW; (5)Storage Temperature:-65℃ to 150℃; (6)Operating Temperature:0℃ to 70℃.
Features
M34116C1 features: (1)hw and sw compatiblewith m116; (2)1 to 64 serial channels per frame(controlled by sync signal period); (3)29 maximumconferences; (4)1 to 64 serial channels per conferences; (5)3 simultaneous operation modes available: conference, transparent and tone generation; (6)typical bit rates:1536/1544/2048/4096Kbits/s; (7)compatible with all kinds of PCM format; (8)μ anda law(pin programmable); (9)equal priority to every channel; (10)one frame and one channel delay; (11)fromsending to receiving; (12)overflowinformation for each conference by pin os (overflow signalling) and on data bus on mpu request; (13)instruction set compatible with M3488; (14)programmable input and output attenuation or gain from 0 to 15dB with step of 1dB for each channel; (15)tone generation from 3.9hz to 3938hz with min. step of 3.9Hz.

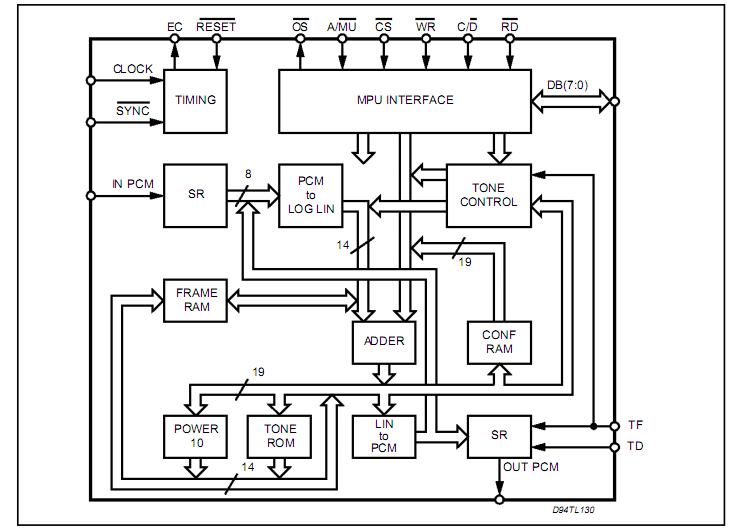

Diagrams
 |
