Product Summary

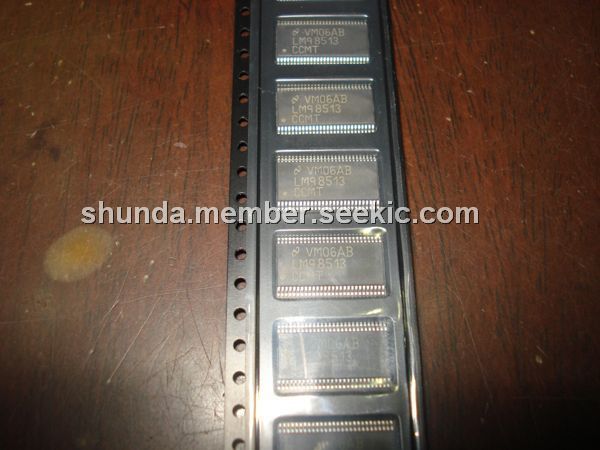

The LM98513CCMT is a fully integrated, high performance 10-Bit, 50 MSPS CCD signal processing solution for digital copiers and scanners. The 10-bit analog-to-digital converters have excellent dynamic performance making the LM98513CCMT transparent in the image reproduction chain. The applications of the LM98513CCMT are Digital Plain Paper Copiers, Multi-Function Printers, Facsimile Equipment, Desktop Publishing, Flatbed or Handheld Color Scanners, High-speed Document Scanner.

Parametrics

LM98513CCMT absolute maximum ratings: (1)Any Positive Supply Voltage:4.2V; (2)Voltage On Any Analog Input or Output Pin:-0.3V to 4.2V; (3)Voltage On Any Digital Input or Output Pin:-0.3V to 4.2V; (4)Input Current at any pin:±25mA; (5)Package Input Current:±50mA; (6)ESD Susceptibility: Human Body Model:3000V, Machine Model:300V; (7)Soldering Temperature: Infrared, 10 seconds:235℃; (8)Storage Temperature:-65℃ to 150℃.

Features

LM98513CCMT features: (1)3 Volt Single Power Supply; (2)Low Power CMOS Design; (3)4 Wire Serial Interface; (4)2.5 Volt Data Output Levels; (5)Dual Inputs with Symmetrical Architecture; (6)Even/Odd Channel Offset Correction; (7)Digital Black Level Clamp; (8)Programmable Input Clamp.

Diagrams

LM98513CCMT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM98513CCMTX/NOPB
LM98513CCMTX/NOPB
National Semiconductor (TI)
Processors - Application Specialized
Data Sheet
0-690: $5.99
690-1000: $5.50
