Product Summary

The MT90866AG Digital Switch provides switching capacities of 4,096 x 2,432 channels between backplane and local streams, 2,432 x 2,432 channels among local streams and 2,048 x 2,048 channels among backplane streams. The applications of the MT90866AG include Carrier-grade VoIP Gateways, IP-PBX and PABX, Integrated Access Devices, Access Servers.

Parametrics

MT90866AG absolute maximum ratings: (1)Supply Voltage: -0.5 to 5.0 V; (2)BSTio Bias Voltage: -0.5 to 7.0 V; (3)Input Voltage: -0.5 to VDD + 0.5 V; (4)Output Voltage: -0.5 to VDD + 0.5 V; (5)Package power dissipation: 2 W; (6)Storage temperature: - 55 to +125 ℃.

Features

MT90866AG features: (1)2,432 x 2,432 non-blocking switching among local streams; (2)4,096 x 2,432 blocking switching between backplane and local streams; (3)2,048 x 2,048 non-blocking switching among backplane streams; (4)Rate conversion between backplane and local streams; (5)Rate conversion among local streams; (6)Backplane interface accepts data rates of 8.192 Mb/s or 16.384 Mb/s.

Diagrams

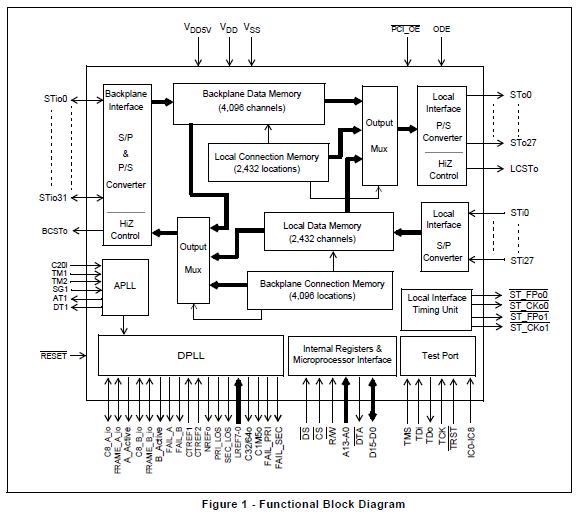

MT90866AG block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MT90866AG
MT90866AG

Other


Data Sheet

Negotiable
