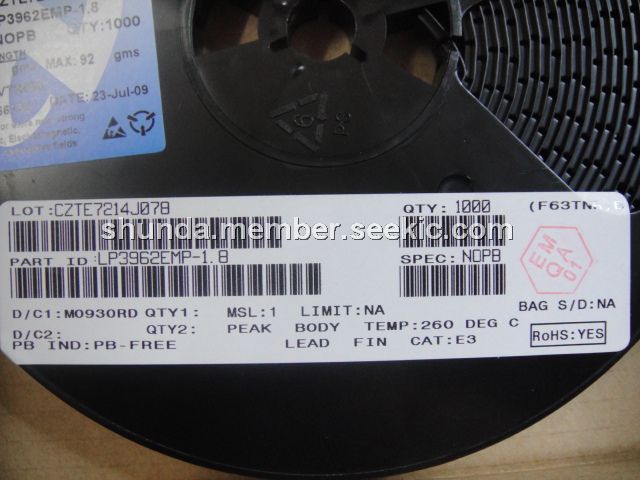

LP3962EMP-1.8

1.5A, Fast Ultra, Low Dropout Linear Regulator, SOT223, Low ground pin current, 1.5A DC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.00

PartNumber:: LP3962EMP-1.8

Brand:: National Semiconductor - NS | Pack: SOT | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-17

From Other Seller

Part Number:LP3962EMP-1.8
US $0.50 - 1.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LP3962EMP-1.8 is a 1.5A Fast Ultra Low Dropout Linear Regulator. It operates from a +2.5V to +7.0V input supply. Wide range of preset output voltage options are available. The LP3962EMP-1.8 responds very fast to step changes in load which makes them suitable for low voltage microprocessor applications. The LP3962EMP-1.8 is developed on a CMOS process which allows low quiescent current operation independent of output load current. The applications of the LP3962EMP-1.8 are Microprocessor power supplies, GTL, GTL+, BTL, and SSTL bus terminators, Power supplies for DSPs, SCSI terminator, Post regulators, High efficiency linear regulators, Battery chargers, Other battery powered applications.

Parametrics

LP3962EMP-1.8 absolute maximum ratings: (1)Storage Temperature Range:-65℃ to +150℃; (2)Lead Temperature(Soldering, 5 sec.):260℃; (3)ESD Rating:2 kV; (4)Power Dissipation:Internally Limited; (5)Input Supply Voltage (Survival):-0.3V to +7.5V; (6)Shutdown Input Voltage(Survival):-0.3V to VIN+0.3V; (7)Output Voltage (Survival):-0.3V to +7.5V; (8)IOUT (Survival):Short Circuit Protected; (9)Maximum Voltage for ERROR Pin:VIN+0.3V; (10)Maximum Voltage for SENSE Pin:VOUT+0.3V.

Features

LP3962EMP-1.8 features: (1)Ultra low dropout voltage; (2)Low ground pin current; (3)Load regulation of 0.04%; (4)15μA quiescent current in shutdown mode; (5)Guaranteed output current of 1.5A DC; (6)Available in SOT-223,TO-263 and TO-220 packages; (7)Output voltage accuracy ±1.5%; (8)Error flag indicates output status; (9)Extremely low output capacitor requirements; (10)Overtemperature/overcurrent protection; (11)-40℃ to +125℃ junction temperature range.
