DS90C365AMT

Product Summary

The DS90C365AMT is a 3.3V Programmable LVDS Transmitter. The DS90C365AMT converts 21 bits of LVCMOS/ LVTTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over the fourth LVDS link. The DS90C365AMT can be programmed for Rising edge strobe or Falling edge strobe through a dedicated pin. A Rising edge or Falling edge strobe transmitter will interoperate with a Falling edge strobe FPDLink Receiver without any translation logic. The DS90C365AMT is an ideal means to solve EMI and cable size problems associated with wide, high-speed TTL interfaces with added Spead Spectrum Clocking support.

Parametrics

DS90C365AMT absolute maximum ratings: (1)Supply Voltage (VCC):-0.3V to +4V; (2)CMOS/TTL Input Voltage:-0.5V to (VCC + 0.3V); (3)LVDS Driver Output Voltage:-0.3V to (VCC + 0.3V); (4)LVDS Output Short Circuit: Duration:Continuous; (5)Junction Temperature:+150℃; (6)Storage Temperature:-65℃ to +150℃; (7)Lead Temperature(Soldering, 4 sec):+260℃.

Features

DS90C365AMT features: (1)No special start-up sequence required between clock/data and /PD pins. Input signals (clock and data) can be applied either before or after the device is powered; (2)Support Spread Spectrum Clocking up to 100kHz frequency modulation & deviations of ±2.5% center spread or -5% down spread; (3)“Input Clock Detection” feature will pull all LVDS pairs to logic low when input clock is missing and when /PD pin is logic high; (4)18 to 85 MHz shift clock support; (5)Tx power consumption < 146 mW (typ) @ 85 MHz Grayscale; (6)Tx Power-down mode < 37 uW (typ); (7)Supports VGA, SVGA, XGA, SXGA(dual pixel), SXGA+(dual pixel), UXGA(dual pixel); (8)Narrow bus reduces cable size and cost; (9)Up to 1.785 Gbps throughput; (10)Up to 223.125 Megabytes/sec bandwidth; (11)345 mV (typ) swing LVDS devices for low EMI; (12)PLL requires no external components; (13)Compliant to TIA/EIA-644 LVDS standard; (14)Low profile 48-lead TSSOP package.

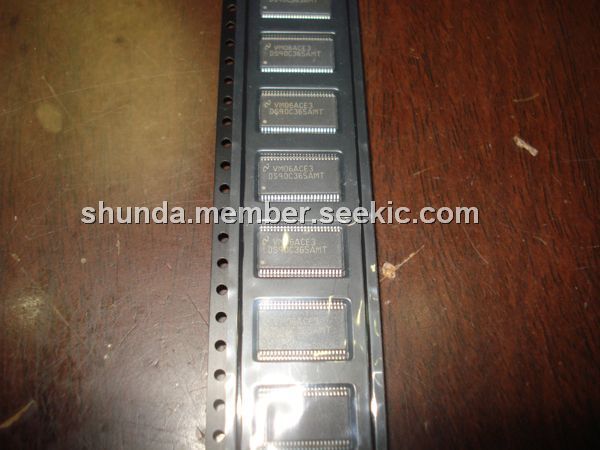

Diagrams
