Product Summary
The VN330SP is a quad high side smart power solid state relay, which made using STMicroelectronics VIPower Technology, intended for driving four indipendent resistive or inductive loads with one side connected to ground. Active current limitation of the VN330SP avoids dropping the system power supply in case of shorted load. Built-in thermal shut-down protects the chip from over temperature and short circuit.
Parametrics
VN330SP absolute maximum ratings: (1)Power Supply Voltage: 45 V; (2)Reverse Supply Voltage: -0.3 V; (3)Output Current (cont.): Internally Limited A; (4)Reverse Output Current (per channel): -6 A; (5)Input Current (per channel): ±10 mA; (6)DIAG Pin Current: ±10 mA; (7)Electrostatic Discharge (1.5 kW, 100 pF): 2000 V; (8)Single Pulse Avalanche Energy per Channel Not Symultaneously: 400 mJ; (9)Power Dissipation at Tc ≤ 25 ℃: Internally Limited W; (10)Junct ion Operating Temperature: Internally Limited ℃; (11)Storage Temperature: -55 to 150 ℃.
Features
VN330SP features: (1)output current: 0.7A per channel; (2)digital inputs clampedat 32V minimum voltage; (3)shorted load and overtemperature protections; (4)built-in current limiter; (5)under voltage shut down; (6)open drain diagnostic output; (7)fast demagnetization of inductive loads.

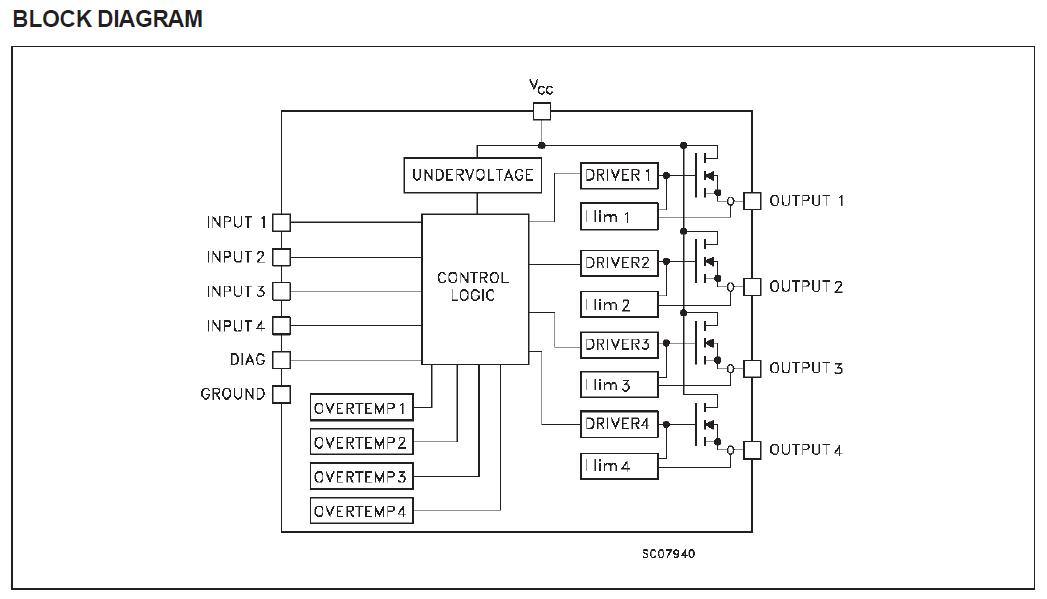

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VN330SP |
STMicroelectronics |
Solid State Relays Quad High Side Solid State Relay |
Data Sheet |
Negotiable |
|
||||||||||||
 |
VN330SP(8932) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
VN330SP-E |
STMicroelectronics |
Power Driver ICs SOLID STATE RELAY |
Data Sheet |
|
|
||||||||||||
|
VN330SP13TR |
STMicroelectronics |
Power Driver ICs Quad High Side |
Data Sheet |
Negotiable |
|
||||||||||||
|
VN330SPTR-32-E |
STMicroelectronics |
Power Switch ICs - Power Distribution Quad HiSide smart Pwr Solid St Relay |
Data Sheet |
|
|
||||||||||||
|
VN330SP-32-E |
STMicroelectronics |
Power Switch ICs - Power Distribution Quad HiSide smart Pwr Solid St Relay |
Data Sheet |
|
|
||||||||||||
|
VN330SPTR-E |
STMicroelectronics |
Power Driver ICs QUAD HIGH SIDE |
Data Sheet |
|
|
||||||||||||
