Product Summary
The 10BQ100TR surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications of 10BQ100TR are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.
Parametrics
10BQ100TR absolute maximum ratings: (1)Rectangular waveform, IF(AV): 1.0A; (2)VRRM: 100V; (3)IFSM, tp = 5 μs sine: 780A; (4)VF, 1.0 Apk, TJ = 125℃: 0.62V; (5)TJ Range: - 55 to 175℃.
Features
10BQ100TR features: (1)Small foot print, surface mountable; (2)Low forward voltage drop; (3)High frequency operation; (4)Guard ring for enhanced ruggedness and long term reliability; (5)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (6)Compliant to RoHS directive 2002/95/EC; (7)Designed and qualified for industrial level.

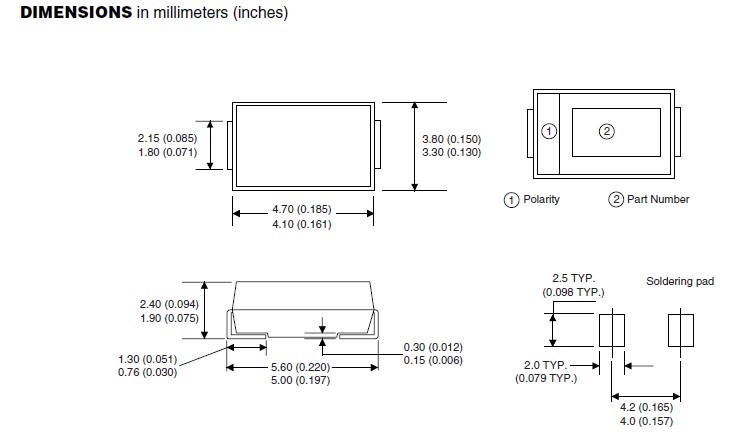

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 10BQ100TR |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 1.0 Amp 100 Volt |
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
10BQ100TRPBF |
|
DIODE SCHOTTKY 100V 1A SMB |
Data Sheet |
|
|
||||||||||||||||||
