Product Summary
The TC4469COE is a logic-input CMOS quad driver. The TC4469COE is a family of four-output CMOS buffers/MOSFET drivers with 1.2 A peak drive capability. Unlike other MOSFET drivers, the TC4469COE has two inputs for each output. The TC4469COE drivers can continuously source up to 250 mA into ground referenced loads. It is ideal for direct driving low current motors or driving MOSFETs in a H-bridge configuration for higher current motor drive.
Parametrics
TC4469COE absolute maximum ratings: (1)Supply Voltage: +20 V; (2)Input Voltage: (GND – 5 V) to (VDD + 0.3 V); (3)Package Power Dissipation: (TA ≤ 70℃), PDIP: 800 mW; (4)CERDIP: 840 mW, SOIC: 760 mW; (5)Package Thermal Resistance:; (6)CERDIP RθJ-A: 100℃/W, CERDIP RθJ-C: 23℃/W, PDIP RθJ-A: 80℃/W; (7)Operating Temperature Range: C Version: 0℃ to +70℃, E Version: -40℃ to +85℃; (8)Maximum Chip Temperature: +150℃; (9)Storage Temperature Range: -65℃ to +150℃.
Features
TC4469COE features: (1)High Peak Output Current: 1.2 A; (2)Wide Operating Range: -4.5 V to 18 V; (3)Symmetrical Rise/Fall Times: 25 nsec; (4)Short, Equal Delay Times: 75 nsec; (5)Latch-proof. Will Withstand 500 mA Inductive Kickback; (6)3 Input Logic Choices: AND / NAND / AND + Inv; (7)ESD Protection on All Pins: 2 kV.

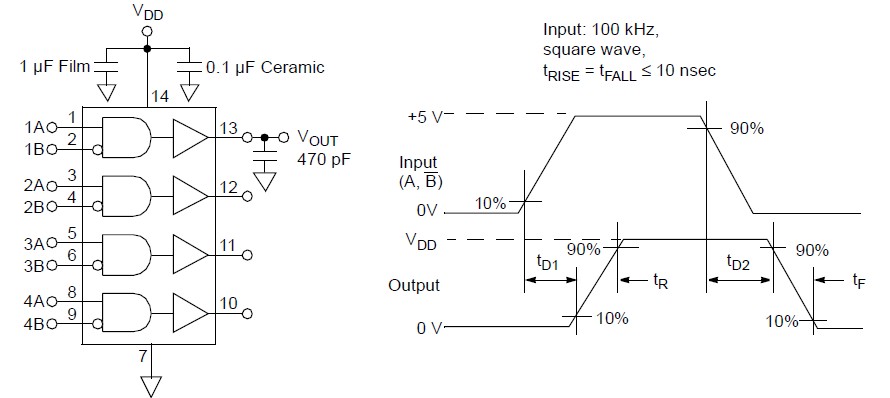

Diagrams
