Product Summary
The S80C196NP25 is a 16-bit MCS 96 microcontroller. The device features 1 Mbyte of linear address space, a demultiplexed bus, and a chip-select unit. The external bus can dynamically switch between multiplexed and demultiplexed operation. When operating at 25 MHz in demultiplexed mode, the S80C196NP25 can access a 100 ns memory device with zero wait states. It is available without ROM (80C196NP) or with 4 Kbytes of ROM (83C196NP).
Parametrics
S80C196NP25 absolute maximum ratings: (1)Storage Temperature: –60℃ to +150℃; (2)Supply Voltage with Respect to VSS: –0.5 V to +7.0 V; (3)Power Dissipation: 1.5 W.
Features
S80C196NP25 features: (1)25 MHz Operation at 4.5–5.5 Volts; (2)1 Mbyte of Linear Address Space; (3)Optional 4 Kbytes of ROM; (4)1000 Bytes of Register RAM; (5)Register-register Architecture; (6)32 I/O Port Pins; (7)16 Prioritized Interrupt Sources; (8)4 External Interrupt Pins and NMI Pin; (9)2 Flexible 16-bit Timer/Counters with Quadrature Counting Capability; (10)3 Pulse-width Modulator (PWM) Outputs with High Drive Capability.

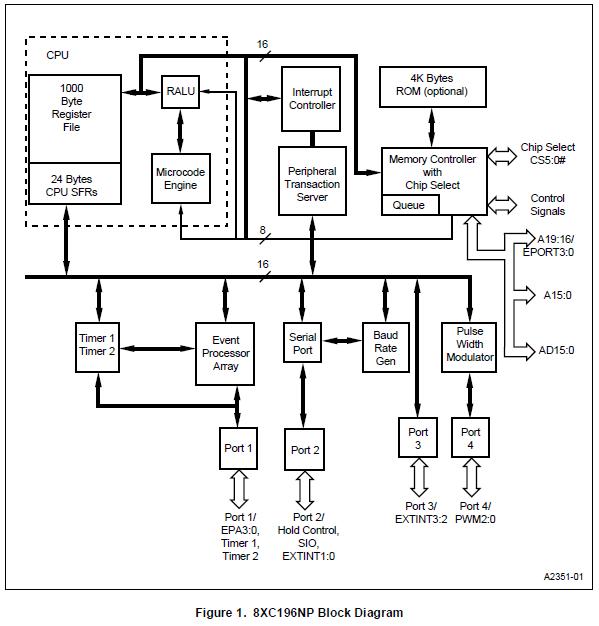

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S80C196NP25 |
|
IC MPU 16-BIT 5V 25MHZ 100-QFP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
S80C186EB25 |
|
IC MPU 16-BIT 5V 25MHZ 80-MQFP |
Data Sheet |
Negotiable |
|
||||
|
