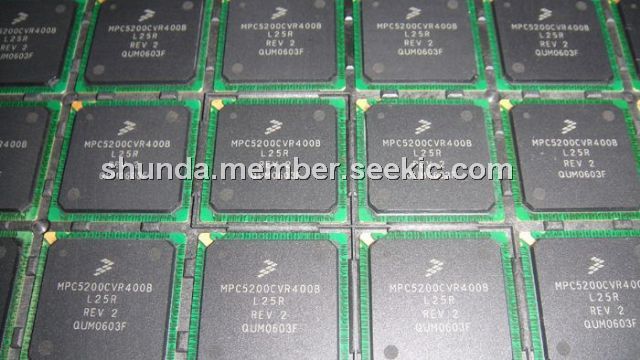

MPC5200CVR400B

SDRAM/DDR Memory Controller, BGA, –0.3 to 1.8 V, PowerPC core

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~5.00

PartNumber:: MPC5200CVR400B

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: BGA | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-11

From Other Seller

Part Number:MPC5200CVR400B
US $4.00 - 5.00
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

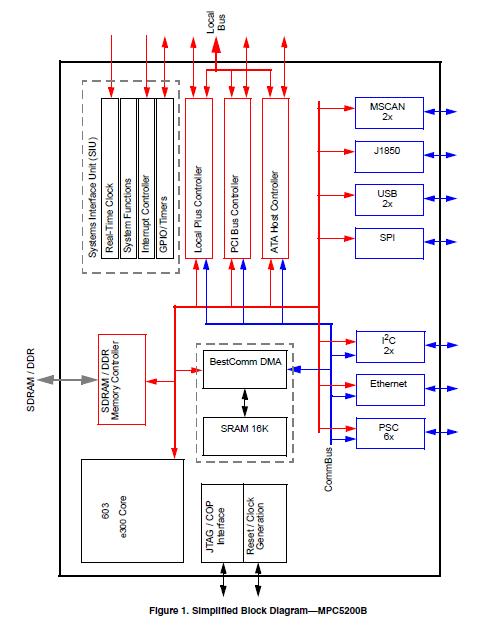

The MPC5200CVR400B is a SDRAM/DDR Memory Controller. It integrates a high performance MPC603e series e300 core with a rich set of peripheral functions focused on communications and systems integration. The e300 core design is based on the PowerPC core architecture. MPC5200CVR400B incorporates an innovative BestComm I/O subsystem, which isolates routine maintenance of peripheral functions from the embedded e300 core.

Parametrics

MPC5200CVR400B absolute maximum ratings: (1)Supply voltage - e300 core and peripheral logic: –0.3 to 1.8 V; (2)Supply voltage - I/O buffers: –0.3 to 3.6 V; (3)Supply voltage - System APLL: –0.3 to 2.1 V; (4)Supply voltage - e300 APLL: –0.3 to 2.1 V; (5)Input voltage (VDD_IO): –0.3 to VDD_IO + 0.3 V; (6)Input voltage (VDD_MEM_IO): –0.3 to VDD_MEM_IO + 0.3 V; (7)Input voltage overshoot: 1.0 V; (8)Input voltage undershoot: 1.0 V; (9)Storage temperature range: –55 to 150 ℃.

Features

MPC5200CVR400B features: (1)MPC603e series e300 core: Superscalar architecture, 760 MIPS at 400 MHz (-40 to +85 ℃), 16 k Instruction cache, 16 k Data cache, Double precision FPU; (2)SDRAM / DDR Memory Interface: up to 133-MHz operation, SDRAM and DDR SDRAM support, 256-MByte addressing range per CS, two CS available; (3)Flexible multi-function External Bus Interface: Supports interfacing to ROM/Flash/SRAM memories or other memory mapped devices, 8 programmable Chip Selects, Non multiplexed data access using 8/16/32 bit databus with up to 26-bit address.
