Product Summary

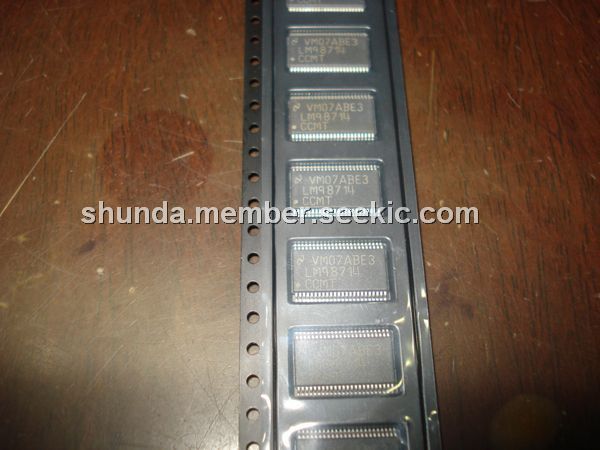

The LM98714CCMT is a fully integrated, high performance 16-Bit, 45 MSPS signal processing solution for digital color copiers, scanners, and other image processing applications. The 16-bit ADC has excellent dynamic performance making the LM98714CCMT transparent in the image reproduction chain. The applications of the LM98714CCMT are Multi-Function Peripherals, Facsimile Equipment, Flatbed or Handheld Color Scanners, High-speed Document Scanner.
Parametrics
LM98714CCMT absolute maximum ratings: (1)Supply Voltage (VA,VR,VD,VC): 4.2V; (2)Voltage on Any Input Pin(Not to exceed 4.2V):-0.3V to (VA + 0.3V); (3)Voltage on Any Output Pin(execpt DVB and not to exceed 4.2V):-0.3V to (VA + 0.3V); (4)DVB Output Pin Voltage:2.0V ; (5)Input Current at any pin other than Supply Pins:±25 mA; (6)Package Input Current (except Supply Pins):±50 mA; (7)Maximum Junction Temperature:150℃; (8)Thermal Resistance:66℃/W; (9)Package Dissipation at TA = 25℃:1.89W; (10)ESD Rating: Human Body Model:2500V, Machine Model:250V; (11)Storage Temperature:-65℃ to +150℃.
Features
LM98714CCMT features: (1)LVDS/CMOS Outputs; (2)LVDS/CMOS Pixel Rate Input Clock or ADC Input Clock; (3)CDS or S/H Processing for CCD or CIS sensors; (4)Independent Gain/Offset Correction for Each Channel; (5)Digital Black Level Correction Loop for Each Channel; (6)Programmable Input Clamp Voltage; (7)Flexible CCD/CIS Sensor Timing Generator.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM98714CCMT |
National Semiconductor (TI) |
ADC (A/D Converters) |
Data Sheet |
|
|
||||||||||||
|
LM98714CCMT/NOPB |
National Semiconductor (TI) |
ADC (A/D Converters) |
Data Sheet |
|
|
||||||||||||
|
LM98714CCMTX/NOPB |
National Semiconductor (TI) |
ADC (A/D Converters) |
Data Sheet |
|
|
||||||||||||
|
LM98714CCMTX |
National Semiconductor (TI) |
ADC (A/D Converters) |
Data Sheet |
|
|
||||||||||||
