Product Summary

The LM334M is a 3-terminal adjustable current source. Current is established with one external resistor and no other parts are required. Initial current accuracy is ±3%. The LM334M is true floating current sources with no separate power supply connections. The applications for the LM334M include bias networks, surge protection, low power reference, ramp generation, LED driver, and temperature sensing.

Parametrics

LM334M absolute maximum ratings: (1)V+ to V- Forward Voltage:40V; (2)V+ to V- Reverse Voltage:20V; (3)R Pin to V- Voltage:5V; (4)Set Current:10 mA; (5)Power Dissipation:400 mW; (6)ESD Susceptibility:2000V; (7)Operating Temperature Range:0℃ to +70℃.

Features

LM334M features: (1)Operates from 1V to 40V; (2)0.02%/V current regulation; (3)Programmable from 1μA to 10mA; (4)True 2-terminal operation; (5)Available as fully specified temperature sensor; (6)±3% initial accuracy.

Diagrams

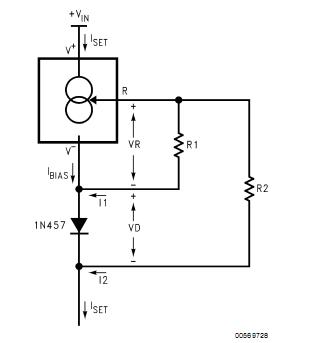

LM334M circuit diagram
