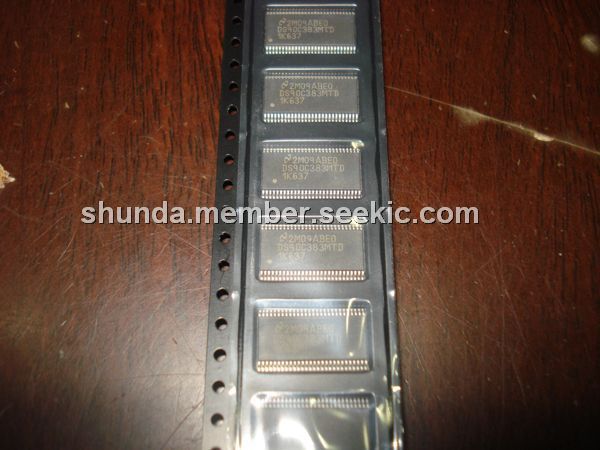

DS90C383MTD

3.3V Programmable LVDS Transmitter, TSSOP-56, Power-down mode, Falling edge data strobe Receiver

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~2.80

PartNumber:: DS90C383MTD

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-16

From Other Seller

Part Number:DS90C383MTD
US $0.50 - 2.80
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

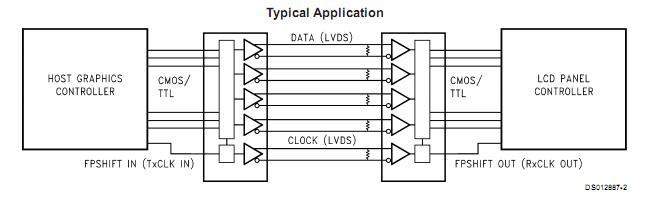

The DS90C383MTD is a 3.3V Programmable LVDS Transmitter. It converts 28 bits of LVCMOS/LVTTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. The DS90C383MTD is offered with programmable edge data strobes for convenient interface with a variety of graphics controllers. The DS90C383MTD can be programmed for Rising edge strobe or Falling edge strobe through a dedicated pin.

Parametrics

DS90C383MTD absolute maximum ratings: (1)Supply Voltage (VCC):-0.3V to +4V; (2)CMOS/TTL Input Voltage:-0.3V to (VCC + 0.3V); (3)CMOS/TTL Output Voltage:-0.3V to (VCC + 0.3V); (4)LVDS Receiver Input Voltage:-0.3V to (VCC + 0.3V); (5)LVDS Driver Output Voltage:-0.3V to (VCC + 0.3V); (6)LVDS Output Short Circuit: Duration:Continuous; (7)Junction Temperature:+150℃; (8)Storage Temperature:-65℃ to +150℃; (9)Lead Temperature(Soldering, 4 sec for TSSOP):+260℃.

Features

DS90C383MTD features: (1)20 to 65 MHz shift clock support; (2)Programmable transmitter (DS90C383) strobe select(Rising or Falling edge strobe); (3)Single 3.3V supply; (4)Chipset (Tx + Rx) power consumption < 250 mW (typ); (5)Power-down mode (< 0.5 mW total); (6)Single pixel per clock XGA (1024x768) ready; (7)Supports VGA, SVGA, XGA and higher addressability.; (8)Up to 227 Megabytes/sec bandwidth; (9)Up to 1.8 Gbps throughput; (10)Narrow bus reduces cable size and cost; (11)290 mV swing LVDS devices for low EMI; (12)PLL requires no external components; (13)Low profile 56-lead TSSOP package.; (14)Also available in a 64 ball, 0.8mm fine pitch ball grid array(FBGA) package; (15)Falling edge data strobe Receiver; (16)Compatible with TIA/EIA-644 LVDS standard; (17)ESD rating >7kV; (18)Operating Temperature: -40℃ to +85℃.
