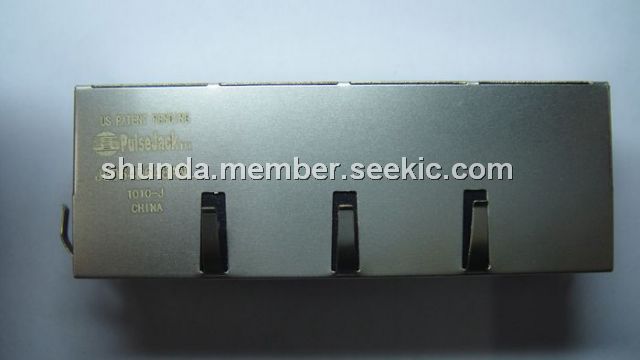

J8064D648ANL

integrated magnetics connector, Tab-DOWN 8-pin, internal magnetics, 100% electrically tested, -1.0dB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~3.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.20~3.80

PartNumber:: J8064D648ANL

Brand:: Pulse A Technitrol Company - PAT | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-17

From Other Seller

Part Number:J8064D648ANL
US $2.20 - 3.80
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The J8064D648ANL is an integrated magnetics connector. It is designed to support applications such as SOHO(ADSL modems), LAN-on-Motherboard (LOM), Hub and Switches.

Parametrics

J8064D648ANL general specifications: (1)Height Above Board 0.536” (13.61mm) ; (2)LED Color:Green - Yellow ; (3)Mounting Type:Panel Mount; Through Hole, Right Angle ; (4)Number of Cores per Jack:4 ; (5)Number of Ports:4 ; (6)Number of Rows:1 ; (7)Packaging:Tray ; (8)Shielding:Shielded ; (9)Speed:10/100 Base-TX ; (10)Tab Direction:Down ; (11)Lead Free Status:Lead Free ; (12)RoHS Status:RoHS Compliant ; (13)insertion loss TX/RX:-1.0dB typ.; (14)return loss:1MHz to 10MHz:-20dB, 30MHz:-16dB, 60MHz to 80MHz:-12dB; (15)Hipot:1500Vrms.

Features

J8064D648ANL features: (1)RoHS-5 peak wave solder temperature rating 235℃; (2)RoHS-6 peak wave solder temperature rating 260℃; (3)RJ45 1xN, Tab-DOWN 8-pin with internal magnetics; (4)Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP; (5)Internal magnetics: 100% electrically tested for HI-POT and functionality.
