Product Summary

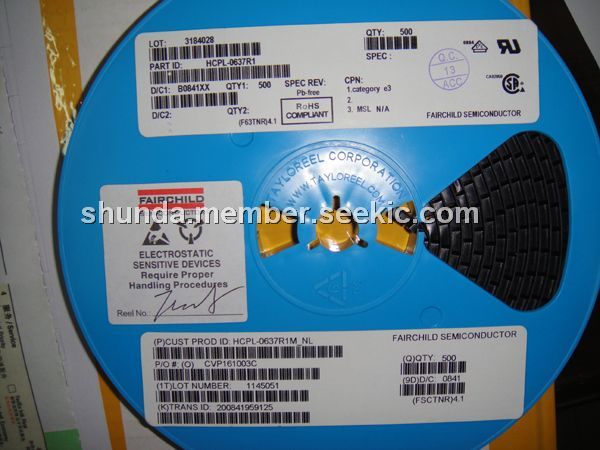

The HCPL-0637R1 is a High Speed-10 MBit/s Logic Gate Optocoupler. It consists of an AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with a strobable output (single channel devices). The HCPL-0637R1 is housed in a compact small-outline package. The applications of the HCPL-0637R1 are Ground loop elimination, LSTTL to TTL, LSTTL or 5-volt CMOS, Line receiver, data transmission, Data multiplexing, Switching power supplies, Pulse transformer replacement, Computer-peripheral interface.
Parametrics
HCPL-0637R1 absolute maximum ratings: (1)Storage Temperature:-40℃ to +125℃; (2)Operating Temperature:-40℃ to +85℃; (3)Reverse Input Voltage (each channel):5.0V; (4)Supply Voltage:7.0V; (5)Output Current (each channel):15mA ; (6)Output Voltage (each channel):7.0V; (7)Collector Output Power Dissipation:85mW.
Features
HCPL-0637R1 features: (1)Compact SO8 package; (2)Very high speed-10 MBit/s; (3)Superior CMR; (4)Logic gate output; (5)Strobable output (single channel devices); (6)Wired OR-open collector; (7)U.L. recognized (File # E90700).
