Product Summary

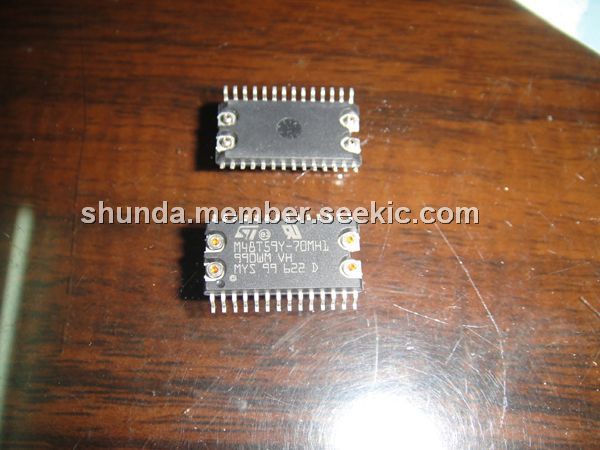

The M48T59Y-70MH1 is an 8 Kb x 8 non-volatile static RAM and real-time clock. The monolithic chip is available in two special packages to provide a highly integrated battery backed-up memory and real-time clock solution. The M48T59Y-70MH1 is a non-volatile pin and function equivalent to any JEDEC standard 8 Kb x8 SRAM. The M48T59Y-70MH1 also easily fits into many ROM, EPROM, and EEPROM sockets, providing the non-volatility of PROMs without any requirement for special write timing or limitations on the number of writes that can be performed.
Parametrics
M48T59Y-70MH1 absolute maximum ratings: (1)Ambient operating temperature:0℃ to 70℃; (2)Storage temperature (VCC off, oscillator off):–40℃ to 85℃; (3)Lead solder temperature for 10 seconds:260℃; (4)Input or output voltages:–0.3V to 7 V; (5)Supply voltage:–0.3V to 7V; (6)Output current:20 mA; (7)Power dissipation:1 W.
Features
M48T59Y-70MH1 features: (1)Integrated ultra low power SRAM, real-time clock, power-fail control circuit, and battery; (2)Frequency test output for real-time clock software calibration; (3)Automatic power-fail chip deselect and WRITE protection; (4)WRITE protect voltages(VPFD = Power-fail deselect voltage):VCC = 4.5 to 5.5 V, 4.2 V ≤ VPFD ≤ 4.5 V; (5)Self-contained battery and crystal in the CAPHAT DIP package; (6)Packaging includes a 28-lead SOIC and SNAPHAT top (to be ordered separately); (7)Packaging includes a 28-lead SOIC and SNAPHAT top (to be ordered separately); (8)SOIC package provides direct connection for a SNAPHAT top which contains the battery and crystal; (9)Microprocessor power-on reset (valid even during battery back-up mode); (10)Programmable alarm output active in the battery back-up mode; (11)Battery low flag; (12)RoHS compliant:Lead-free second level interconnect.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M48T59Y-70MH1 |
STMicroelectronics |
Real Time Clock U 511-M48T59Y-70MH1E |
Data Sheet |
Negotiable |
|
||||
|
M48T59Y-70MH1E |
STMicroelectronics |
Real Time Clock 64K (8Kx8) 70ns |
Data Sheet |
Negotiable |
|
||||
|
M48T59Y-70MH1F |
STMicroelectronics |
Real Time Clock 64K (8Kx8) 70ns |
Data Sheet |
Negotiable |
|
||||
