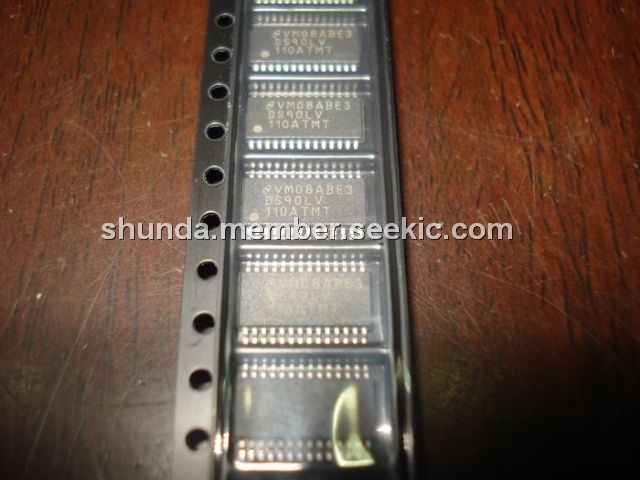

DS90LV110ATMT

1 to 10 LVDS Data/Clock Distributor, Single +3.3 V Supply, Balanced output impedance, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.40~3.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.40~3.80

PartNumber:: DS90LV110ATMT

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-17

From Other Seller

Part Number:DS90LV110ATMT
US $2.40 - 3.80
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

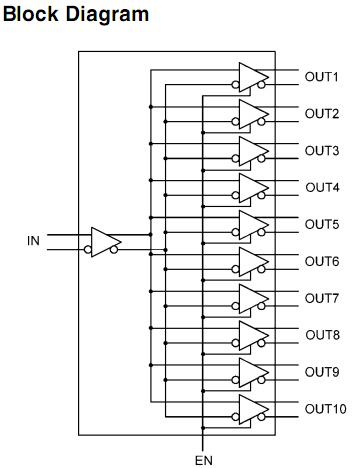

The DS90LV110ATMT is a 1 to 10 data/clock distributor utilizing LVDS(Low Voltage Differential Signaling) technology for low power, high speed operation. The DS90LV110ATMT can be used as a high speed differential 1 to 10 signal distribution / fanout replacing multi-drop bus applications for higher speed links with improved signal quality. It can also be used for clock distribution up to 200MHz. The DS90LV110ATMT accepts LVDS signal levels, LVPECL levels directly or PECL with attenuation networks.

Parametrics

DS90LV110ATMT absolute maximum ratings: (1)Supply Voltage (VDD-VSS):-0.3V to +4V; (2)LVCMOS/LVTTL Input Voltage(EN):-0.3V to (VCC + 0.3V); (3)LVDS Receiver Input Voltage(IN+, IN-):-0.3V to +4V; (4)LVDS Driver Output Voltage(OUT+, OUT-):-0.3V to +4V; (5)Junction Temperature:+150℃; (6)Storage Temperature Range:-65℃ to +150℃; (7)Lead Temperature(Soldering, 4 sec.):+260℃.

Features

DS90LV110ATMT features: (1)Low jitter 400 Mbps fully differential data path; (2)145 ps (typ) of pk-pk jitter with PRBS = 223?1 data pattern at 400 Mbps; (3)Single +3.3 V Supply; (4)Balanced output impedance; (5)Output channel-to-channel skew is 35ps (typ); (6)Differential output voltage (VOD) is 320mV (typ) with; (7)100Ω termination load; (8)LVDS receiver inputs accept LVPECL signals; (9)LVDS input failsafe; (10)Fast propagation delay of 2.8 ns (typ); (11)Receiver open, shorted, and terminated input failsafe; (12)28 lead TSSOP package; (13)Conforms to ANSI/TIA/EIA-644 LVDS standard.
