Product Summary

The COP8CCR9IMT7 is an 8-Bit CMOS Flash Microcontroller. The COP8CCR9IMT7 is suited for applications requiring a full featured, in-system reprogrammable controller with large memory and low EMI. The COP8CCR9IMT7 is used for development, pre-production and volume production with a range of COP8 software and hardware development tools.

Parametrics

COP8CCR9IMT7 absolute maximum ratings: (1)Supply Voltage (VCC):7V; (2)Voltage at Any Pin:-0.3V to VCC +0.3V; (3)Total Current into VCC Pin (Source):200 mA; (4)Total Current out of GND Pin (Sink):200 mA; (5)Storage Temperature Range:-65℃ to +140℃; (6)ESD Protection Level:2 kV (Human Body Model).

Features

COP8CCR9IMT7 features: (1)32 kbytes Flash Program Memory with Security Feature; (2)Virtual EEPROM using Flash Program Memory; (3)1 kbyte volatile RAM; (4)10-bit Successive Approximation Analog to Digital Converter (up to 16 channels); (5)100% Precise Analog Emulation; (6)USART with onchip baud generator; (7)2.7V to 5.5V In-System Programmability of Flash; (8)High endurance -100k Read/Write Cycles; (9)Superior Data Retention - 100 years; (10)Dual Clock Operation with HALT/IDLE Power Save Modes; (11)Quiet Design (low radiated emissions); (12)Multi-Input Wake-up with optional interrupts; (13)MICROWIRE/PLUS (Serial Peripheral Interface Compatible); (14)Clock Doubler for 20 MHz operation from 10 MHz; (15)Oscillator, with 0.5 μs Instruction Cycle; (16)Idle Timer with programmable interrupt interval; (17)8-bit Stack Pointer SP (stack in RAM); (18)Two 8-bit Register Indirect Data Memory Pointers; (19)True bit manipulation; (20)WATCHDOG and Clock Monitor logic.

Diagrams

COP8CCR9IMT7 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

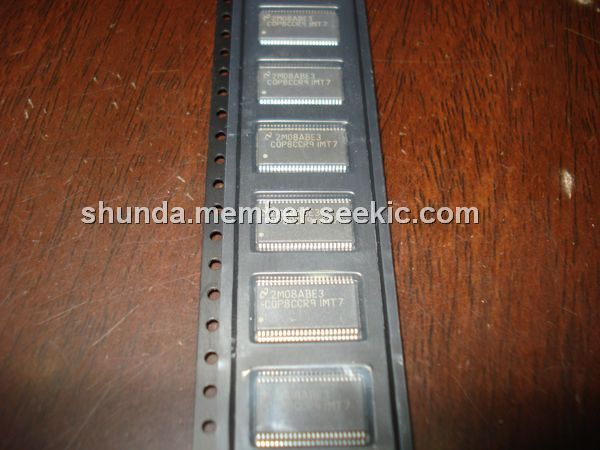

COP8CCR9IMT7
COP8CCR9IMT7

National Semiconductor (TI)

8-bit Microcontrollers (MCU)

Data Sheet

0-38: $11.53
38-114: $10.68
114-266: $9.83
266-532: $9.32
COP8CCR9IMT7/NOPB
COP8CCR9IMT7/NOPB

National Semiconductor (TI)

8-bit Microcontrollers (MCU)

Data Sheet

0-1: $13.56
1-25: $11.53
25-100: $10.68
100-250: $9.83
