Product Summary
The CLC5955MTD is a monolithic 11-bit, 55MSPS analog-to-digital converter. The CLC5955MTD has been optimized for use in IF-sampled digital receivers and other applications where high resolution, high sampling rate, wide dynamic range, low power dissipation, and compact size are required. The applications of the CLC5955MTD are Cellular base-stations, Digital communications, Infrared/CCD imaging, IF sampling, Electro-optics, Instrumentation, Medical imaging, High definition video.
Parametrics
CLC5955MTD absolute maximum rating: (1)positive supply voltage (Vcc):-0.5V to +6V; (2)differential voltage between any two grounds:<100mV; (3)analog input voltage range:GND to Vcc; (4)digital input voltage range:-0.5V to +Vcc; (5)output short circuit duration (one-pin to ground):infinite; (6)junction temperature:175℃; (7)storage temperature range:-65℃ to 150℃; (8)lead solder duration (+300℃):10sec; (9)ESD tolerance: human body model:2000V, machine model:200V.
Features
CLC5955MTD features: (1)55MSPS; (2)Wide dynamic range: SFDR: 74dBc, SFDR w/dither: 85dBFS, SNR: 64dB; (3)IF sampling capability; (4)Input bandwidth = 0 to 300MHz; (5)Low power dissipation: 640mW; (6)Very small package: 48-pin TSSOP; (7)Single +5V supply; (8)Data valid clock output; (9)Programmable output levels:3.3V or 2.5V.

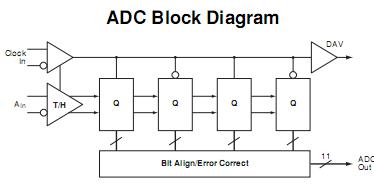

Diagrams
