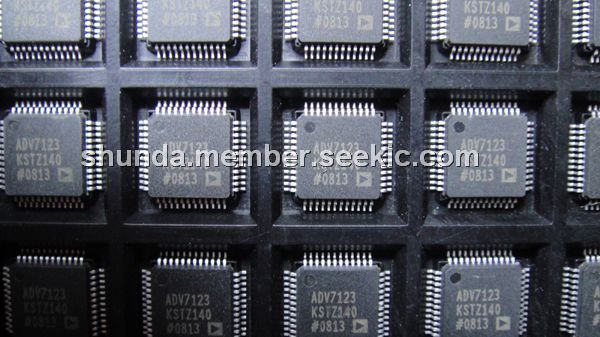

ADV7123KST-140

CMOS, 240 MHz, Triple 10-Bit, High Speed Video DAC, LQFP48, Low Power Dissipation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.18~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.18~5.00

PartNumber:: ADV7123KST-140

Brand:: Analog Devices - ADI | Pack: LQFP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-14

From Other Seller

Part Number:ADV7123KST-140
US $2.18 - 5.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

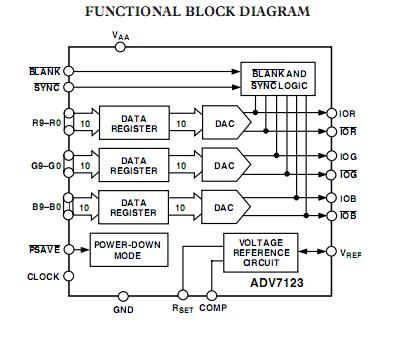

The ADV7123KST-140 is a triple high speed, digital-to-analog converter on a single monolithic chip. The ADV7123KST-140 consists of three high speed, 10-bit, video D/A converters with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source. The applications of the ADV7123KST-140 are Digital Video Systems, High Resolution Color Graphics, Digital Radio Modulation, Image Processing, Instrumentation, Video Signal Reconstruction.

Parametrics

ADV7123KST-140 absolute maximum ratings: (1)VAA to GND:7 V; (2)Voltage on any Digital Pin:GND – 0.5 V to VAA + 0.5 V; (3)Ambient Operating Temperature (TA):–40℃ to +85℃; (4)Storage Temperature (TS):–65℃ to +150℃; (5)Junction Temperature (TJ):150℃; (6)Lead Temperature (Soldering, 10 sec):300℃; (7)Vapor Phase Soldering (1 Minute):220℃; (8)IOUT to GND2:0 V to VAA.

Features

ADV7123KST-140 features: (1)330 MSPS Throughput Rate; (2)Triple 10-Bit D/A Converters; (3)SFDR: 70 dB at fCLK = 50 MHz; fOUT = 1 MHz, 53 dB at fCLK = 140 MHz; fOUT = 40 MHz; (4)RS-343A/RS-170 Compatible Output; (5)Complementary Outputs; (6)DAC Output Current Range 2 mA to 26 mA; (7)TTL Compatible Inputs; (8)Internal Reference (1.23 V); (9)Single-Supply 5 V/3.3 V Operation; (10)48-Lead LQFP Package; (11)Low Power Dissipation (30 mW Min @ 3 V); (12)Low Power Standby Mode (6 mW Typ @ 3 V); (13)Industrial Temperature Range (–40℃ to +85℃).
