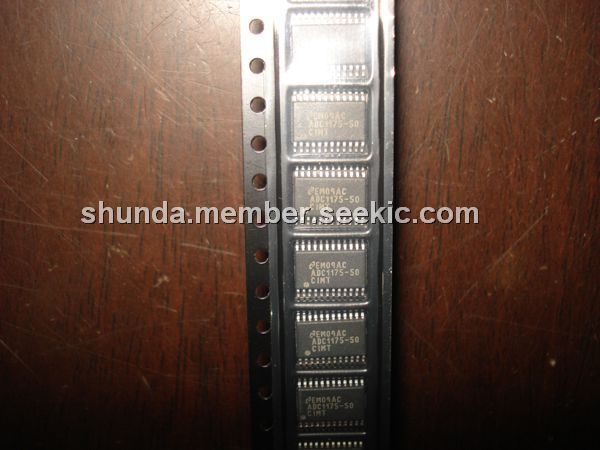

Product Summary
The ADC1175-50CIMT is a low power, 20 Msps analog-to-digital converter that digitizes signals to 8 bits while consuming just 60 mW of power (typ). The ADC1175-50CIMT uses a unique architecture that achieves 7.5 Effective Bits. Output formatting is straight binary coding.The excellent DC and AC characteristics of ADC1175-50CIMT, together with its low power consumption and +5V single suppl yoperation, make ADC1175-50CIMT ideally suited for many video, imaging and communications applications, including use in portable equipment. Furthermore, the ADC1175-50CIMT is resistant to latchup and the outputs are short-circuit proof.
Parametrics
ADC1175-50CIMT absolute maximum ratings: (1)AVDD, DVDD: 6.5V; (2)Voltage on Any Pin: -0.3V to 6.5V; (3)VRT, VRB:AVSS to AVDD; (4)CLK, OE Voltage: -0.05 to (AVDD + 0.05V); (5)Digital Output Voltage: DVSS to DVDD; (6)Input Current:±25mA; (7)Package Input Current: ±50mA; (8)ESD Susceptibility Human Body Model: 2000V; (9)Machine Model: 200V; (10)Soldering Temp, Infared, 10 sec: 300℃; (11)Storage Temperature:-65℃ to +150℃.
Features
ADC1175-50CIMT features: (1)Internal Sample-and-Hold Function; (2)Single +5V Operation; (3)Internal Reference Bias Resistors; (4)Industry Standard Pinout; (5)TRI-STATE Outputs.

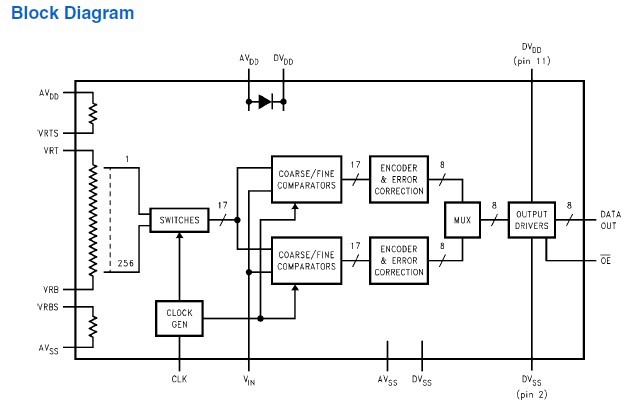

Diagrams
