Product Summary

The ADC10080CIMT is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 10-bit digital words at 80 Megasamples per second (MSPS). The ADC10080CIMT uses a differential, pipeline architecture with digital error correction and an on-chip sample-and-hold circuit to provide a complete conversion solution and to minimize power consumption, while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 400 MHz. Operating on a single 3.0V power supply, the ADC10080CIMT consumes just 78.6 mW at 80 MSPS, including the reference current. The Standby feature reduces power consumption to just 15 mW.

Parametrics

ADC10080CIMT absolute maximum ratings: (1)Resolution: 10 Bits; (2)Conversion Rate: 80 MSPS; (3)Full Power Bandwidth: 400 MHz; (4)DNL: ±0.25 LSB (typ); (5)SNR (fIN = 10 MHz): 59.5 dB (typ); (6)SFDR (fIN = 10 MHz): -78.7 dB (typ); (7)Power Consumption, 80 Msps: 78.6 mW.

Features

ADC10080CIMT features: (1)Single +3.0V operation; (2)Selectable full-scale input swing; (3)400 MHz -3 dB input bandwidth; (4)Low power consumption; (5)Standby mode; (6)On-chip reference and sample-and-hold amplifier; (7)Offset binary or two’s complement data format; (8)Separate adjustable output driver supply.

Diagrams

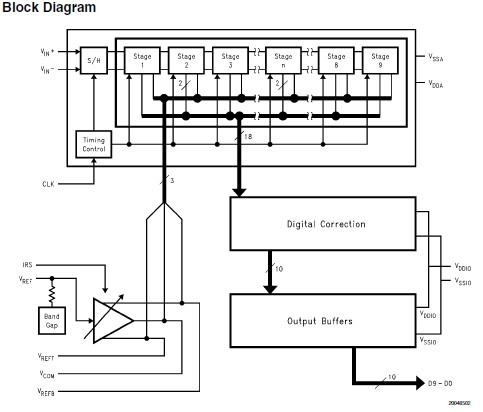

ADC10080CIMT Block Diagram

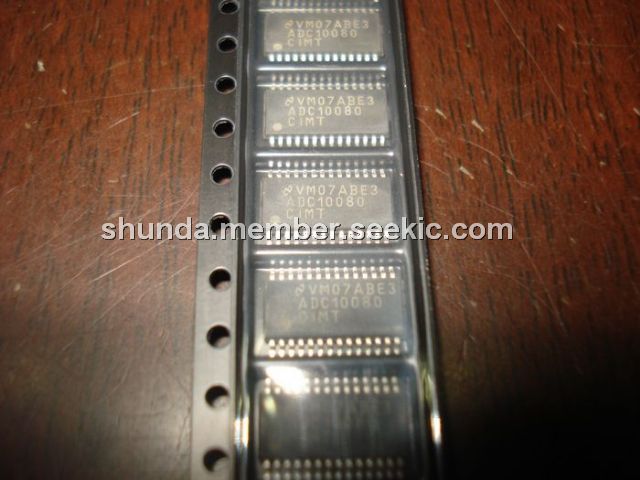

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADC10080CIMT
ADC10080CIMT
National Semiconductor (TI)
ADC (A/D Converters)
Data Sheet
0-96: $5.20
96-144: $4.69
144-288: $4.31
288-528: $3.93
ADC10080CIMT/NOPB
ADC10080CIMT/NOPB
National Semiconductor (TI)
ADC (A/D Converters)
Data Sheet
0-1: $6.75
1-25: $5.53
25-100: $4.99
100-250: $4.59
ADC10080CIMTX/NOPB
ADC10080CIMTX/NOPB
National Semiconductor (TI)
ADC (A/D Converters)
Data Sheet
0-1924: $3.51
1924-2500: $3.51
ADC10080CIMTX
ADC10080CIMTX
National Semiconductor (TI)
ADC (A/D Converters)
Data Sheet
0-2500: $3.51
