Product Summary

The 53748-0308 is a 0.50mm (.020") Pitch SlimStack Plug.

Parametrics

53748-0308 absolute maximum ratings: (1)Voltage: 50V; (2)Current: 0.5A; (3)Contact Resistance: 50m; (4)Dielectric Withstanding Voltage: 500V AC; (5)Insulation Resistance: 100 M; (6)Housing: White glass-filled LCP plastic, UL 94V; (7)Contact: Brass; (8)Plating: Gold over Nickel; (9)Operating Temperature: -40 to +105℃.

Features

53748-0308 features: (1)Stacking height: 3.0mm; (2)Sizes 20 to 80 circuits; (3)Locking feature provides secure mating; (4)High temperature housing; (5)Durable blade on beam contact interface; (6)Anti-flux design.

Diagrams

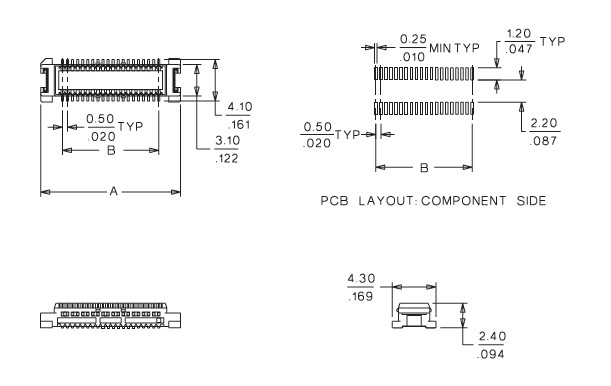

53748-0308 catalog drawing

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
53748-0308
53748-0308
Molex
Board to Board / Mezzanine Connectors 30 Ckt Vert. Plug 0.5mm SMT Dual-Row
Data Sheet
0-1: $1.58
1-10: $1.38
10-25: $1.25
25-50: $1.10
53748-0308-C
53748-0308-C
Molex Connector Corporation
CONN PLUG 30POS 3MM SMD .5MM
Data Sheet
1-10: $1.86
10-25: $1.55
25-100: $1.24
100-250: $1.09
250-500: $0.93
500-1000: $0.84
