Product Summary
The XCS40PQ208CKN a high-volume Field Programmable Gate Array that delivers all the key requirements for ASIC replacement up to 40,000 gates. These requirements include high performance, on-chip RAM, core solutions and prices that, in high volume, approach and in many cases are equivalent to mask programmed ASIC devices.
Parametrics
XCS40PQ208CKN absolute maximum ratings: (1)Supply voltage relative to GND: –0.5 to 4.0 V; (2)Input voltage relative to GND: 5V Tolerant I/O Checked: –0.5 to 5.5 V, Not 5V Tolerant I/Os: –0.5 to VCC + 0.5 V; (3)Voltage applied to 3-state output 5V Tolerant I/O Checked: –0.5 to 5.5 V, Not 5V Tolerant I/Os: –0.5 to VCC + 0.5 V; (4)Storage temperature (ambient) –65 to +150 ℃; (5)Junction temperature Plastic packages +125 ℃.
Features
XCS40PQ208CKN features: (1)First ASIC replacement FPGA for high-volume production with on-chip RAM; (2)Density up to 1862 logic cells or 40,000 system gates; (3)Streamlined feature set based on XC4000 architecture; (4)System performance beyond 80 MHz; (5)Broad set of AllianceCORE and LogiCOR predefined solutions available; (6)Unlimited reprogrammability; (7)Low cost; (8)System level features: Available in both 5V and 3.3V versions, On-chip SelectRAM. memory, Fully PCI compliant.

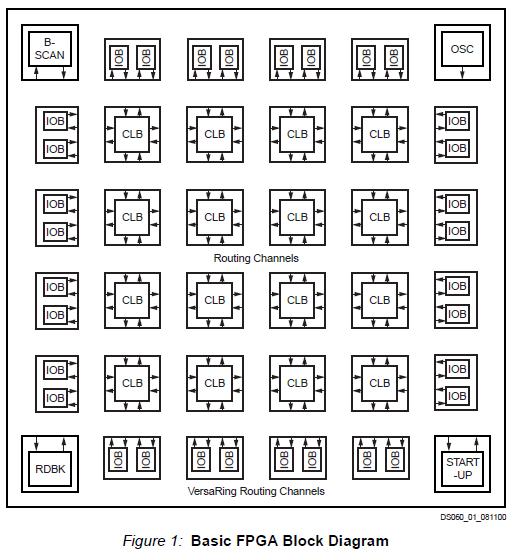

Diagrams
 |
 XCS40 and XCS40XL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XCS40-3BG256C |
|
IC FPGA 5V C-TEMP 256-PBGA |
Data Sheet |
Negotiable |
|
||||
 |
XCS40-3PQ208C |
|
IC FPGA 5V C-TEMP 208-PQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS40-3PQ208I |
|
IC FPGA 5V I-TEMP 208-PQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS40-3PQ240C |
|
IC FPGA 5V C-TEMP 240-PQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS40-4BG256C |
|
IC FPGA 5V C-TEMP 256-PBGA |
Data Sheet |
Negotiable |
|
||||
