Product Summary

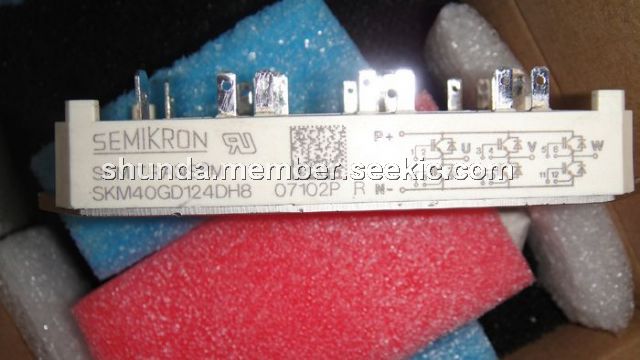

The SKM40GD124DH8 is a low loss IGBT module.
Parametrics
SKM40GD124DH8 absolute maximum ratings: (1)VCES: 1200V; (2)Ic when Tc=25℃: 50(40)A; (3)ICRM when tp=1ms: 50A; (4)VGES: ±20V; (5)Tvj(Tstg) when Toperation≤Tstg: -40 to +150℃; (6)Visol when AC, 1min.: 2500V.
Features
SKM40GD124DH8 features: (1)MOS input; (2)N channel, homegeneous si-structure; (3)Low inductance case; (4)Low tail current with low temperature dependence; (5)Latch up free; (6)Fast and soft CAL diodes; (7)Large clearance and creepage distance.

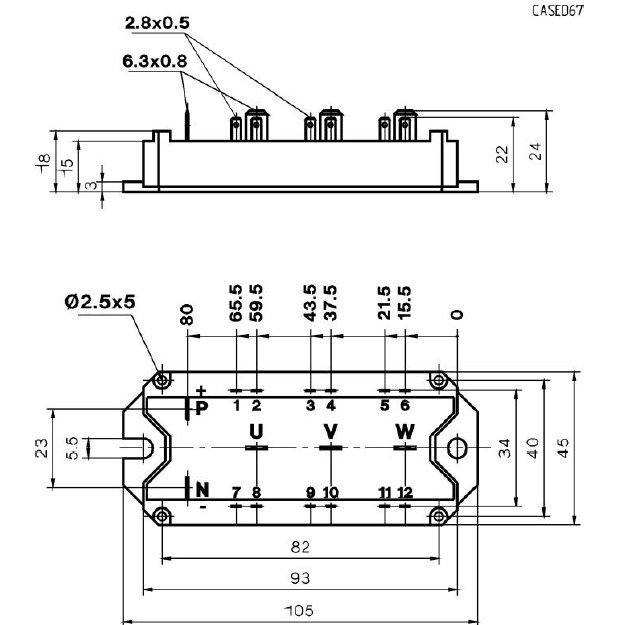

Diagrams
 |
