Product Summary
The LT1013AMJ8/883C is a quad precision Op Amp. The LT1013AMJ8/883C is the first precision quad operational amplifier which directly upgrades designs in the industry standard 14-pin DIP LM324/LM348/OP-11/4156 pin configuration. It is no longer necessary to compromise specifications, while saving board space and cost, as compared to single operational amplifiers.
Parametrics
LT1013AMJ8/883C absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)Input Voltage Equal to Positive Supply Voltage: 5V Below Negative Supply Voltage; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range All Grades: –65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec.): 300℃; (7)Operating Temperature Range: –55 ℃ to 125℃.
Features
LT1013AMJ8/883C features: (1)Pin Compatible to 1458 and 324 with Precision Specs; (2)Guaranteed Offset Voltage 150mV Max; (3)Guaranteed Low Drift 2μV/℃ Max; (4)Guaranteed Offset Current 0.8nA Max; (5)Guaranteed High Gain; (6)5mA Load Current 1.5 Million Min; (7)17mA Load Current 0.8 Million Min; (8)Guaranteed Low Supply Current 500mA Max; (9)Low Voltage Noise, 0.1Hz to 10Hz 0.55mVp-p; (10)Low Current Noise Better than 0P-07, 0.07pA/Hz.

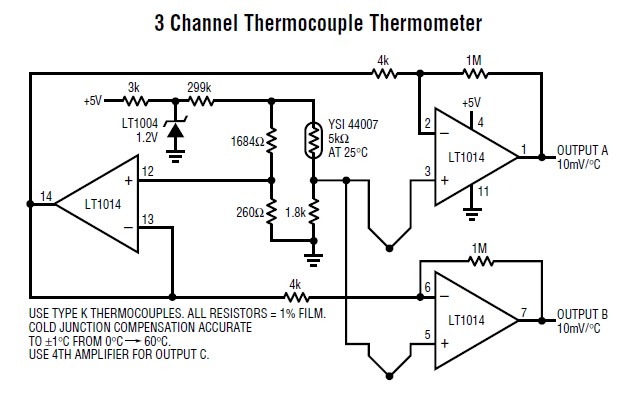

Diagrams
 |
