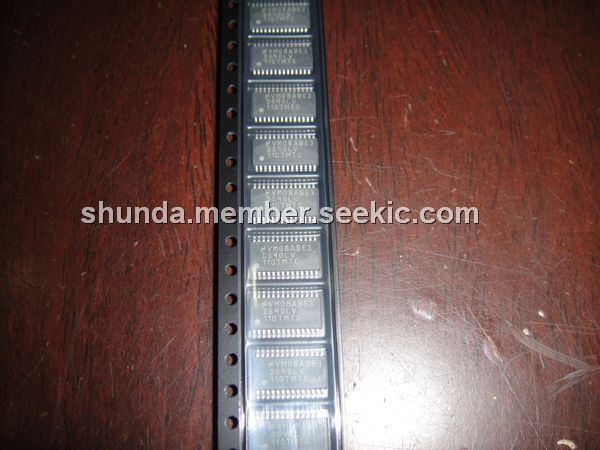

DS90LV110TMTC

1 to 10 LVDS Data/Clock Distributor, Single +3.3 V Supply, Balanced output impedance, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~2.00

PartNumber:: DS90LV110TMTC

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-17

From Other Seller

Part Number:DS90LV110TMTC
US $0.50 - 2.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DS90LV110TMTC is a 1 to 10 data/clock distributor utilizing LVDS(Low Voltage Differential Signaling) technology for low power, high speed operation. The DS90LV110TMTC can be used as a high speed differential 1 to 10 signal distribution / fanout replacing multi-drop bus applications for higher speed links with improved signal quality. It can also be used for clock distribution up to 400MHz. The DS90LV110TMTC accepts LVDS signal levels, LVPECL levels directly or PECL with attenuation networks.

Parametrics

DS90LV110TMTC absolute maximum ratings: (1)Supply Voltage (VDD-VSS):-0.3V to +4V; (2)LVCMOS/LVTTL Input Voltage(EN):-0.3V to (VCC + 0.3V); (3)LVDS Receiver Input Voltage(IN+, IN-):-0.3V to +4V; (4)LVDS Driver Output Voltage(OUT+, OUT-):-0.3V to +4V; (5)Junction Temperature:+150℃; (6)Storage Temperature Range:-65℃ to +150℃; (7)Lead Temperature(Soldering, 4 sec.):+260℃.

Features

DS90LV110TMTC features: (1)Low jitter 800 Mbps fully differential data path; (2)145 ps (typ) of pk-pk jitter with PRBS = 223-1 data pattern at 800 Mbps; (3)Single +3.3 V Supply; (4)Less than 413 mW (typ) total power dissipation; (5)Balanced output impedance; (6)Output channel-to-channel skew is 35ps (typ); (7)Differential output voltage (VOD) is 320mV (typ) with 100Ω termination load; (8)LVDS receiver inputs accept LVPECL signals; (9)Fast propagation delay of 2.8 ns (typ); (10)Receiver input threshold < ±100 mV; (11)28 lead TSSOP package; (12)Conforms to ANSI/TIA/EIA-644 LVDS standard.
