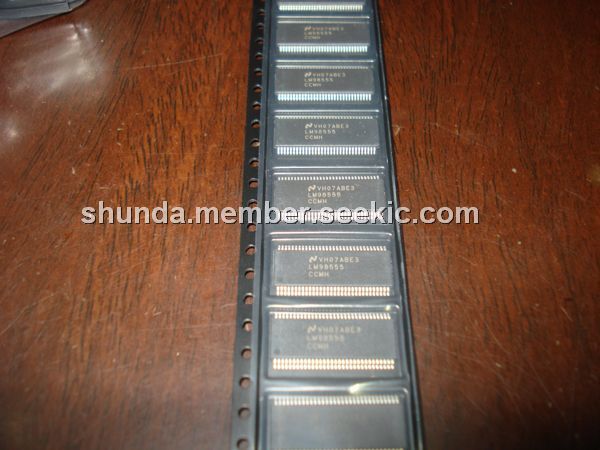

Product Summary

The LM98555CCMH is a highly integrated driver circuit intended for CCD driving applications. The LM98555CCMH combines 25 drivers of varying drive strengths into one chip to provide a complete CCD driving solution. Due to this one-chip integration, optimal skew control is achieved for this demanding application.

Parametrics

LM98555CCMH absolute maximum ratings: (1)Supply Voltage:-0.5V to 6.2V; (2)Package Power Rating at 25℃:2.0 Watts; (3)Voltage on Any Input or Output Pin:-0.5V to VDD+0.5V; (4)DC Input Current at Any Pin:25 mA; (5)DC Package Input Current:50 mA; (6)Storage Temperature:-65℃ to +150℃; (7)Lead temperature (Soldering, 10 sec.):300℃; (8)ESD Susceptibility: Human Body Model:2000V, Machine Model:200V.

Features

LM98555CCMH features: (1)All CCD drivers integrated into one package; (2)High strength drivers designed specifically for CCD loads; (3)Ability to scale clock driver strength; (4)Skew specifications guaranteed; (5)Separate input and output power supplies; (6)CMOS process technology; (7)64-pin TSSOP package with extended power handling capability.

Diagrams

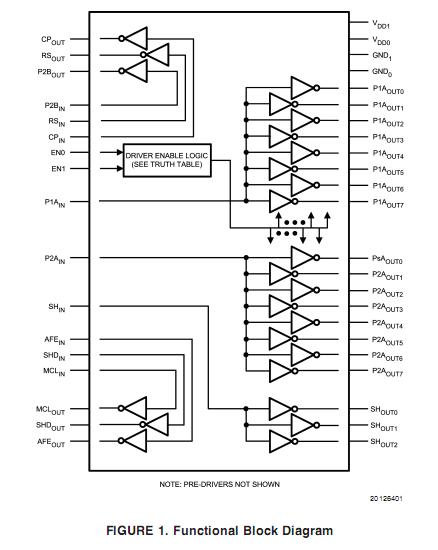

LM98555CCMH block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM98555CCMH
LM98555CCMH
National Semiconductor (TI)
Display Drivers & Controllers
Data Sheet
0-84: $5.73
84-112: $5.17
112-252: $4.75
252-504: $4.33
LM98555CCMH/NOPB
LM98555CCMH/NOPB
National Semiconductor (TI)
Display Drivers & Controllers
Data Sheet
0-1: $6.99
1-25: $5.73
25-100: $5.17
100-250: $4.75
LM98555CCMHX/NOPB
LM98555CCMHX/NOPB
National Semiconductor (TI)
Display Drivers & Controllers
Data Sheet
0-646: $4.33
646-1000: $3.77
LM98555CCMHX
LM98555CCMHX
National Semiconductor (TI)
Display Drivers & Controllers
Data Sheet
0-1000: $3.77
