Product Summary
The IRKH56/12A is a thyristor. The Generation V of Add-A-pak module IRKH56/12A combines the excellent thermal performance obtained by the usage of Direct Bonded Copper substrate with superior mechanical ruggedness, thanks to the insertion of a solid Copper baseplate at the bottom side of the device. The Cu baseplate of the IRKH56/12A allows an easier mounting on the majority of heatsink with increased tolerance of surface roughness and improve thermal spread.
Parametrics
IRKH56/12A absolute maximum ratings: (1)IT(AV) or IF(AV) @ 85℃: 60A; (2)IO(RMS): 135 A; (3)ITSM @ 50Hz: 1310 A; (4)IFSM @ 60Hz: 1370 A; (5)I2t @ 50Hz: 8.50 KA2s; (6)@ 60Hz: 7.82 KA2s; (7)I2√t:85.0 KA2√s; (8)VRRM range 400 to 1600 V; (9)TSTG: - 40 to 125 ℃; (10)TJ: - 40 to125 ℃.
Features
IRKH56/12A features: (1)High Voltage; (2)Industrial Standard Package; (3)Thick Al metal die and double stick bonding; (4)Thick copper baseplate; (5)UL E78996 approved; (6)3500VRMS isolating voltage.

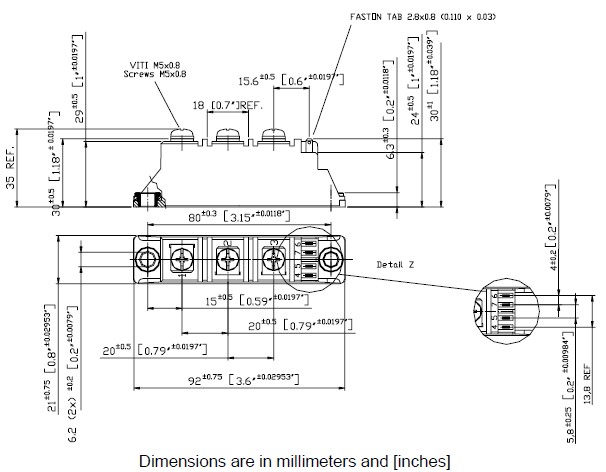

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRKH56/12A |
|
SCR DBL LOSCR 1200V 60A ADDAPAK |
Data Sheet |
Negotiable |
|
||||
