Product Summary

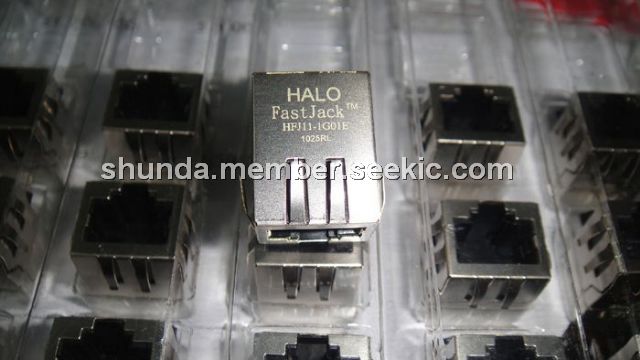

The HFJ11-1G01E is a RJ-45 Connector. It is ideal for hi-density switch applications requiring the highest performance in a minimal amount of real estate. The HFJ11-1G01E is compatible with all leading silicon vendors’ Phy’s.
Parametrics
HFJ11-1G01E general specifications: (1)Operating Temp: 0 to +70℃; (2)Isolation Voltage: 1,500 Vrms; (3)OCL (100KHz, 0.1Vrms, 8mA): 350uH min; (4)CMR (0.1-100MHz): -40dB typ; (5)Insertion Loss (0.1-100MHz): -1.1dB Max; (6)Crosstalk (0.1-100MHz): -[33-20log(F/100Mhz)]dB typ.

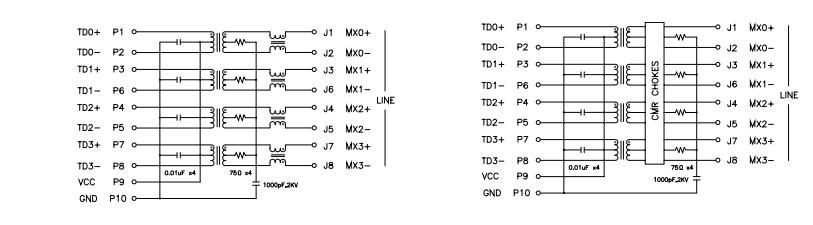

Diagrams
 |
