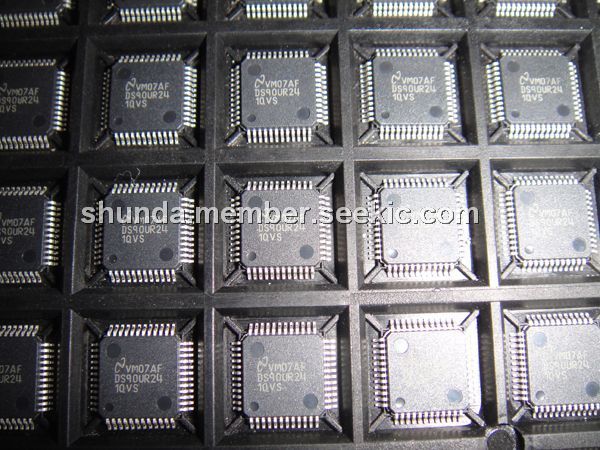

DS90UR241QVS

5MHz to 43 MHz, DC-Balanced, 24-Bit, FPD-Link II Serializer Chipset, Hot plug support, TQFP-48

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.10~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.10~8.00

PartNumber:: DS90UR241QVS

Brand:: National Semiconductor - NS | Pack: TQFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-17

From Other Seller

Part Number:DS90UR241QVS
US $6.10 - 8.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

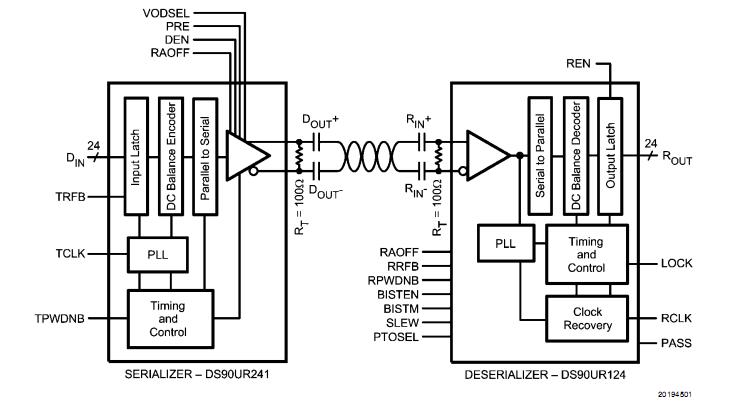

The DS90UR241QVS is a DC-Balanced 24-Bit FPD-Link II Serializer Chipset. It is ideally suited for driving graphical data to displays requiring 18-bit color depth - RGB666 + HS, VS, DE + 3 additional general purpose data channels. The DS90UR241QVS incorporates FPD-Link II LVDS signaling on the high-speed I/O. The applications of the DS90UR241QVS are Automotive Central Information Display, Automotive Instrument Cluster Display, Automotive Heads-Up Display, Remote Camera-based Driver Assistance Systems.

Parametrics

DS90UR241QVS absolute maximum ratings: (1)Supply Voltage (VDD):-0.3V to +4V; (2)LVCMOS Input Voltage:-0.3V to (VDD +0.3V); (3)LVCMOS Output Voltage:-0.3V to (VDD +0.3V); (4)LVDS Receiver Input Voltage:-0.3V to +3.9V; (5)LVDS Driver Output Voltage:-0.3V to +3.9V; (6)LVDS Output Short Circuit Duration:10 ms; (7)Junction Temperature:+150℃; (8)Storage Temperature:-65℃ to +150℃; (9)Lead Temperature(Soldering, 4 seconds):+260℃.

Features

DS90UR241QVS features: (1)Supports displays with 18-bit color depth; (2)5MHz to 43MHz pixel clock; (3)Automotive grade product AEC-Q100 grade 2 qualified; (4)24:1 interface compression; (5)Embedded clock with DC Balancing supports AC-coupled data transmission; (6)Capable to drive up to 10 meters shielded twisted-pair cable; (7)No reference clock required (deserializer); (8)Meets ISO 10605 ESD - Greater than 8 kV HBM ESD structure; (9)Hot plug support; (10)EMI Reduction - Serializer accepts spread spectrum input; data randomization and shuffling on serial link; Deserializer provides Adjustable PTO (progressive turn-on) LVCMOS outputs; (11)@Speed BIST (built-in self test) to validate LVDS transmission path; (12)Individual power-down controls for both Transmitter and Receiver; (13)Power supply range 3.3V ± 10%; (14)48-pin TQFP package for Transmitter and 64-pin TQFP package for Receiver; (15)Temperature range -40℃ to +105℃; (16)Backward compatible mode with DS90C241/DS90C124.
