CS5463-ISZ

Single Phase, Bi-directional Power/Energy IC, TSSOP-24, Low Power Consumption, 2.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~5.00

PartNumber:: CS5463-ISZ

Brand:: Cirrus Logic - Cirrus | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-14

From Other Seller

Part Number:CS5463-ISZ
US $2.00 - 5.00
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
M27C4001-10F1

US $2.00 - 3.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CS5463-ISZ is an integrated power measurement device which combines two analog-to-digital converters, power calculation engine, energy-to-frequency converter, and a serial interface on a single chip. The CS5463-ISZ is designed to accurately measure instantaneous current and voltage, and calculate VRMS, IRMS, instantaneous power, apparent power, active power, and reactive power for single-phase, 2- or 3-wire power metering applications. The CS5463-ISZ is optimized to interface to shunt resistors or current transformers for current measurement, and to resistive dividers or potential transformers for voltage measurement.

Parametrics

CS5463-ISZ absolute maximum ratings: (1)DC Power Supplies:-0.3V to +6.0V; (2)Input Current, Any Pin Except Supplies:±10mA; (3)Output Current, Any Pin Except VREFOUT IOUT:100mA; (4)Power Dissipation:500mW; (5)Analog Input Voltage All Analog Pins:- 0.3 to (VA+) + 0.3 V; (6)Digital Input Voltage All Digital Pins:-0.3 to (VD+) + 0.3 V; (7)Ambient Operating Temperature:-40℃ to 85℃; (8)Storage Temperature:-65℃ to 150℃.

Features

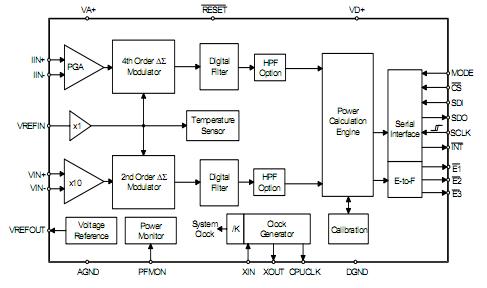

CS5463-ISZ features: (1)Meets accuracy spec for IEC, ANSI, JIS; (2)Low Power Consumption; (3)Current Input Optimized for Sense Resistor; (4)GND-referenced Signals with Single Supply; (5)On-chip 2.5 V Reference (25 ppm/℃ typ); (6)Power Supply Monitor; (7)Simple Three-wire Digital Serial Interface; (8)“Auto-boot” Mode from Serial E2PROM; (9)Power Supply Configurations: VA+ = +5 V; AGND = 0 V; VD+ = +3.3 V to +5 V; (10)Instantaneous Voltage, Current, and Power; (11)IRMS and VRMS, Apparent, Reactive, and Active(Real) Power; (12)Active Fundamental and Harmonic Power; (13)Reactive Fundamental, Power Factor, and Line Frequency; (14)Energy-to-pulse Conversion; (15)System Calibrations and Phase Compensation; (16)Temperature Sensor.
