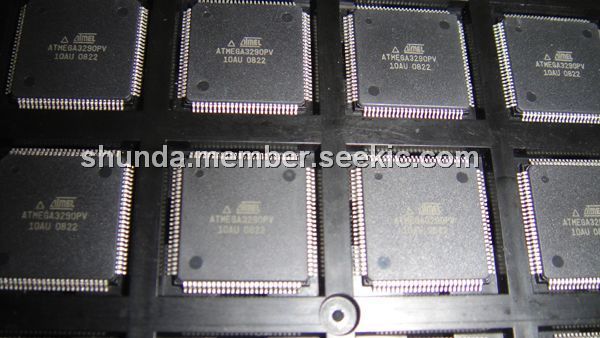

ATMEGA3290PV-10AU

Product Summary

The ATMEGA3290PV-10AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA3290PV-10AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The ATMEGA3290PV-10AU is supported with a full suite of program and system development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators, and Evaluation kits.

Parametrics

ATMEGA3290PV-10AU general specifications: (1)Program Memory Size:32KB (16K x 16) ; (2)RAM Size:2K x 8 ; (3)Number of I /O:69 ; (4)Package / Case:100-TQFP ; (5)Speed:10MHz ; (6)Oscillator Type:Internal ; (7)Packaging:Tray ; (8)Program Memory Type:FLASH ; (9)EEPROM Size:1K x 8 ; (10)Core Processor:AVR ; (11)Data Converters:A/D 8x10b ; (12)Core Size:8-Bit ; (13)Operating Temperature:-40℃ to 85℃; (14)Connectivity:SPI, UART/USART, USI ; (15)Peripherals:Brown-out Detect/Reset, LCD, POR, PWM, WDT ; (16)Voltage - Supply (Vcc/Vdd):1.8 V to 5.5 V.

Features

ATMEGA3290PV-10AU features: (1)130 Powerful Instructions – Most Single Clock Cycle Execution; (2)32 x 8 General Purpose Working Registers; (3)Fully Static Operation; (4)Up to 20 MIPS Throughput at 20 MHz; (5)On-Chip 2-cycle Multiplier; (6)Boundary-scan Capabilities According to the JTAG Standard; (7)Extensive On-chip Debug Support; (8)Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface; (9)Real Time Counter with Separate Oscillator; (10)Four PWM Channels; (11)8-channel, 10-bit ADC; (12)Programmable Serial USART; (13)Master/Slave SPI Serial Interface; (14)Universal Serial Interface with Start Condition Detector; (15)Programmable Watchdog Timer with Separate On-chip Oscillator; (16)On-chip Analog Comparator; (17)Interrupt and Wake-up on Pin Change; (18)Power-on Reset and Programmable Brown-out Detection; (19)Internal Calibrated Oscillator; (20)External and Internal Interrupt Sources; (21)Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby.

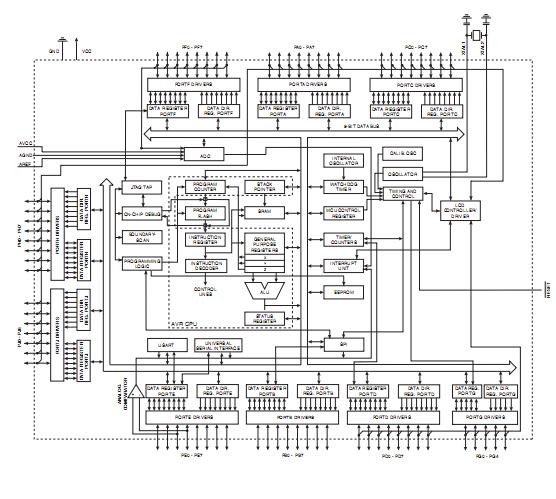

Diagrams
