Product Summary

The AM186ER-40VF is a high-performance 16-bit embedded microcontrollers with RAM. The AM186ER-40VF microcontroller integrates memory and the functions of the CPU, nonmultiplexed address bus, timers, chip selects, interrupt controller, DMA controller, PSRAM controller, watchdog timer, asynchronous serial port, synchronous serial interface, and programmable I/O (PIO) pins on one chip.

Parametrics

AM186ER-40VF absolute maximum ratings: (1)Commercial (TC): 0℃ to + 100℃; (2)Storage temperature: –65℃ to + 125℃; (3)Voltage on any pin with respect to ground: –0.5 V to VCC + 2.6 V.

Features

AM186ER-40VF features: (1)E86TM family 80C186- and 80C188-compatible microcontrollers with enhanced bus interface; (2)Memory integration; (3)High performance; (4)Enhanced features provide faster access to memory and various clock input modes; (5)Familiar 80C186 peripherals with enhanced functionality.

Diagrams

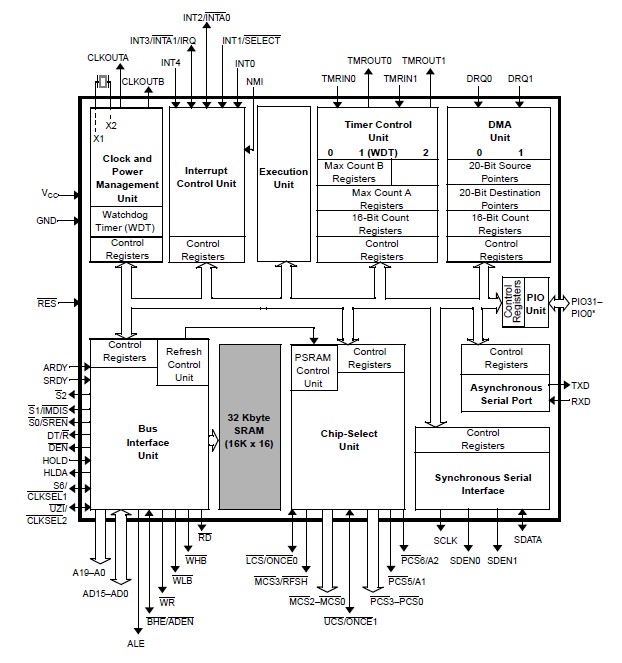

AM186ER-40VF microcontroller block diagram
