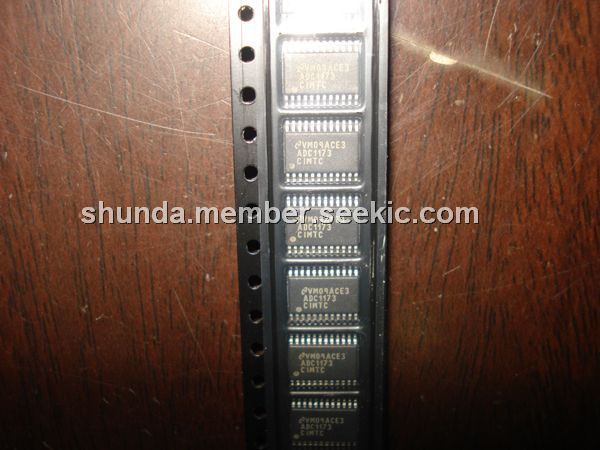

Product Summary
The ADC1173CIMTC is a low power, 15 MSPS analog-to-digital converter that digitizes signals to 8 bits while consuming just 33 mW of power (typ). The ADC1173CIMTC uses a unique architecture that achieves 7.6 Effective Bits. Output formatting is straight binary coding. The excellent DC and AC characteristics of ADC1173CIMTC, together with its low power consumption and +3V single supply operation, make ADC1173CIMTC ideally suited for many video, imaging and communications applications, including use in portable equipment. Furthermore, the ADC1173CIMTC is resistant to latchup and the outputs are short-circuit proof.
Parametrics
ADC1173CIMTC absolute maximum ratings: (1)AVDD, DVDD: 6.5V; (2)Voltage on Any Pin: -0.3V to 6.5V; (3)VRT, VRB: AVDD to VSS; (4)CLK, OE Voltage: -0.05 to (AVDD + 0.05V); (5)Digital Output Voltage: DVSS to DVDD; (6)Input Current: ±25mA; (7)Package Input Current: ±50mA; (8)Human Body Model: 2000V; (9)Machine Model: 200V; (10)Soldering Temp, Infared, 10 sec: 300℃; (11)Storage Temperature: -65℃ to +150℃.
Features
ADC1173CIMTC features: (1)Internal Sample-and-Hold Function; (2)Single +3V Operation; (3)Internal Reference Bias Resistors; (4)Industry Standard Pinout; (5)TRI-STATE Outputs.

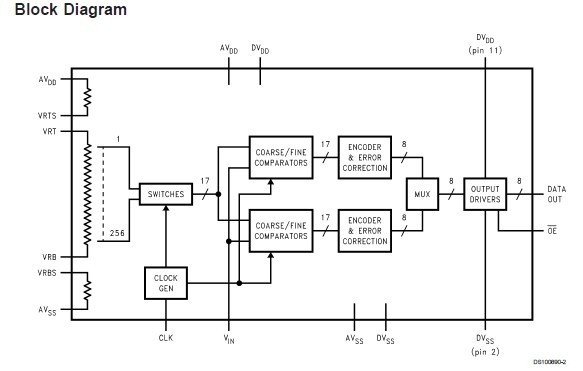

Diagrams
