ADC10040QCIMT

10-Bit, 40 MSPS, 3V, 55.5 mW, A/D Converter (analog-to-digital converter), TSSOP, monolithic CMOS

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.80

PartNumber:: ADC10040QCIMT

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-13

From Other Seller

Part Number:ADC10040QCIMT
US $1.50 - 2.80
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

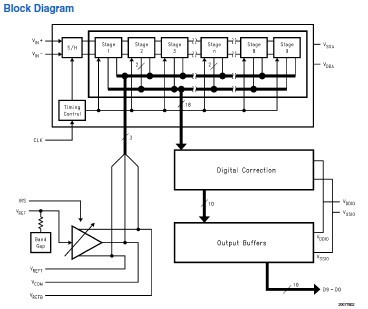

The ADC10040QCIMT is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 10-bit digital words at 40 Megasamples per second (MSPS). The ADC10040QCIMT converter uses a differential, pipeline architecture with digital error correction and an on-chip sample-and-hold circuit to provide a complete conversion solution, and to minimize power consumption, while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 400 MHz. Operating on a single 3.0V power supply, the ADC10040QCIMT consumes just 55.5 mW at 40 MSPS, including the reference current. The Standby feature reduces power consumption to just 13.5 mW.

Parametrics

ADC10040QCIMT absolute maximum ratings: (1)Resolution: 10 Bits; (2)Conversion Rate: 40 MSPS; (3)Full Power Bandwidth: 400 MHz; (4)DNL: ±0.3 LSB (typ); (5)SNR (fIN = 11 MHz): 59.6 dB (typ); (6)SFDR (fIN = 11 MHz): -80 dB (typ); (7)Power Consumption, 40 MHz: 55.5 mW.

Features

ADC10040QCIMT features: (1)Single +3.0V operation; (2)Selectable 2.0 VP-P, 1.5 VP-P, or 1.0 VP-P full-scale input swing; (3)400 MHz -3 dB input bandwidth; (4)Low power consumption; (5)Standby mode; (6)On-chip reference and sample-and-hold amplifier; (7)Offset binary or two’s complement data format; (8)Separate adjustable output driver supply to accommodate 2.5V and 3.3V logic families; (9)AEC-Q100 Grade 3 Qualified; (10)28-pin TSSOP package.
