Product Summary
The IDT7027L25PF is a high-speed 32K x 16 Dual-Port Static RAM, designed to be used as a stand-alone 512K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit-or-more word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 32-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic.
Parametrics
IDT7027L25PF absolute maximum ratings: (1)Terminal Voltage with Respect to GND: -0.5 to +7.0 V; (2)Temperature Under Bias: -55 to +125 ℃; (3)Storage Temperature: -65 to +150 ℃; (4)DC Output Current: 50 mA.
Features
IDT7027L25PF features: (1)True Dual-Ported memory cells which allow simultaneous access of the same memory location; (2)High-speed access: Military: 25/35/55ns (max), Industrial: 25ns (max.), Commercial: 20/25/35/55ns (max.); (3)Low-power operation: IDT7027S: Active: 750mW (typ.), Standby: 5mW (typ.), IDT7027L: Active: 750mW (typ.), Standby: 1mW (typ.).

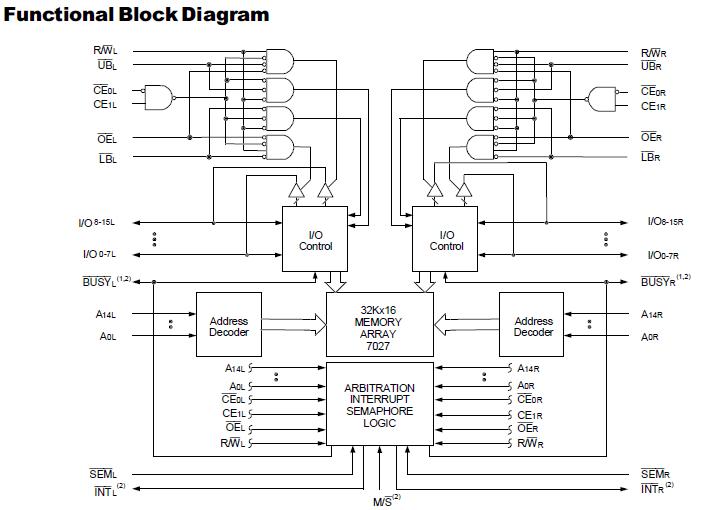

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IDT7027L25PF |
|
IC SRAM 512KBIT 25NS 100TQFP |
Data Sheet |
|
|
||||||||||||||||||||
|
IDT7027L25PF8 |
|
IC SRAM 512KBIT 25NS 100TQFP |
Data Sheet |
|
|
||||||||||||||||||||
|
IDT7027L25PFI |
|
IC SRAM 512KBIT 25NS 100TQFP |
Data Sheet |
|
|
||||||||||||||||||||
