Product Summary

The FM5817-T is a Silicon epitaxial planer type chip schottky barrier diode.

Parametrics

FM5817-T absolute maximum ratings: (1)FM5817-T Maximum Recurrent Peak Reverse Voltage, VRRM: 20V; (2)Maximum RMS Voltage, VRMS: 14V; (3)Maximum DC Blocking Voltage, VDC: 20V; (4)Maximum Average Forward Rectified Current at TA= 90℃, ; (5)Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method), Io: 1.0A; (6)Operating Temperature Range, TJ: 150℃; (7)Storage Temperature Range, TSTG: -55 to + 150℃.

Features

FM5817-T features: (1)Ideal for surface mounted applications; (2)Low leakage current; (3)Metallurgically bonded construction; (4)Mounting position: Any; (5)Weight: 0.057 gram.

Diagrams

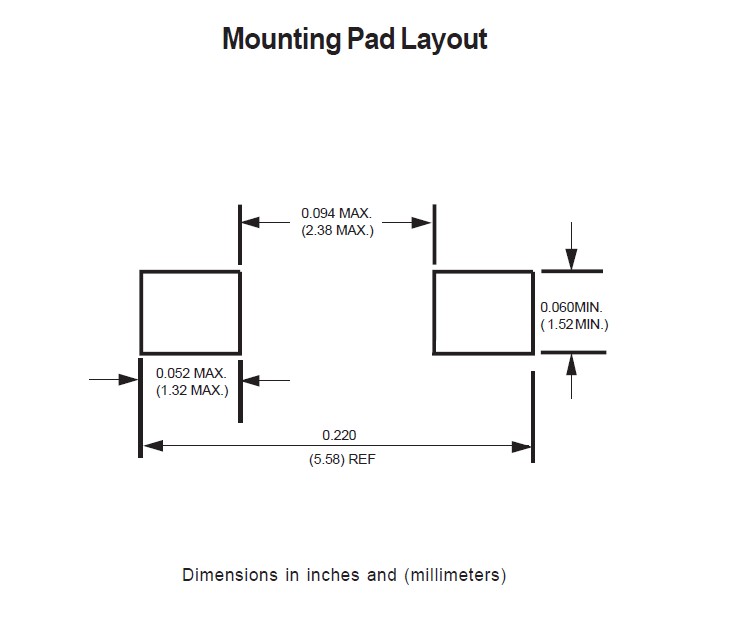

FM5817-T Dimensions in inches
