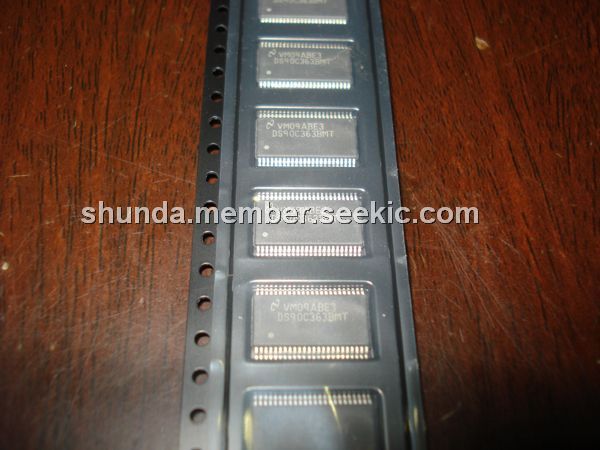

DS90C363BMT

3.3V Programmable LVDS Transmitter, Low profile, 48-lead TSSOP package, Tx Power-down mode

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.30~4.00

PartNumber:: DS90C363BMT

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-16

From Other Seller

Part Number:DS90C363BMT
US $2.30 - 4.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

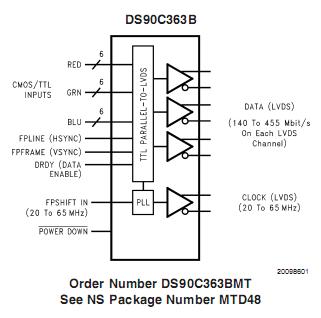

The DS90C363BMT is a 3.3V Programmable LVDS Transmitter. It converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams. The DS90C363BMT can be programmed for Rising edge strobe or Falling edge strobe through a dedicated pin. A Rising edge or Falling edge strobe transmitter will interoperate with a Falling edge strobe Receiver (DS90CF366) without any translation logic. The DS90C363BMT is an ideal means to solve EMI and cable size problems associated with wide, high speed TTL interfaces.

Parametrics

DS90C363BMT absolute maximum ratings: (1)Supply Voltage (VCC):-0.3V to +4V; (2)CMOS/TTL Input Voltage:-0.3V to (VCC + 0.3V); (3)LVDS Driver Output Voltage:-0.3V to (VCC + 0.3V); (4)LVDS Output Short Circuit: Duration:Continuous; (5)Junction Temperature:+150℃; (6)Storage Temperature:-65℃ to +150℃; (7)Lead Temperature(Soldering, 4 sec):+260℃.

Features

DS90C363BMT features: (1)No special start-up sequence required between clock/data and /PD pins. Input signal (clock and data) can be applied either before or after the device is powered; (2)Support Spread Spectrum Clocking up to 100kHz; (3)frequency modulation & deviations of ±2.5% center; (4)spread or -5% down spread; (5)18 to 68 MHz shift clock support; (6)Best–in–Class Set & Hold Times on TxINPUTs; (7)Tx power consumption < 130 mW (typ) @65MHz Grayscale; (8)40% Less Power Dissipation than BiCMOS Alternatives; (9)Tx Power-down mode < 37μW (typ); (10)Supports VGA, SVGA, XGA and Dual Pixel SXGA; (11)Narrow bus reduces cable size and cost; (12)Up to 1.3 Gbps throughput; (13)Up to 170 Megabytes/sec bandwidth; (14)345 mV (typ) swing LVDS devices for low EMI; (15)PLL requires no external components; (16)Compatible with TIA/EIA-644 LVDS standard; (17)Low profile 48-lead TSSOP package; (18)Improved replacement for:SN75LVDS84, DS90C363A.
